PV Thermal Cycle Chamber

Name: PV Thermal Cycle Chamber Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 190376525

PV Test: Suits various size PV modules;
Test Temperature: 85℃±2℃;
Relative Humidity: 85%±5%;
Test Duration: 1000h;
Panel Capacity: 4 / 6 / 8 / 10 / 12 Pieces;
Standard: IEC61215, IEC61646,IEC62688, UL1703,
Free calibration

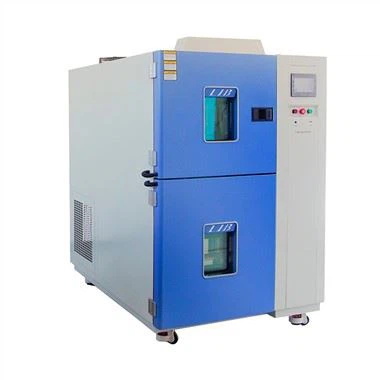

PV Thermal Cycle Chamber

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of pv thermal cycle chamber in China, featured by quality products and low price. Welcome to buy CE approved pv thermal cycle chamber in stock here and get quotation from our factory. Contact us for discount information.

PV Thermal Cycle Chamber is suitable for photovoltaic components to do thermal cycle, wet freezing cycle, high temperature and high humidity double 85 test to confirm whether the components can withstand the subsequent negative temperature influence after high temperature and high humidity.

LIB PV panle test equipment supports 4 / 6 / 8 / 10 / 12 Pieces custom sample holder and size.

Technical Specification

Name	PV Thermal Cycle Chamber
Model	PV-04
Internal Dimension	13007001350
Overall Dimension	190011001750
Interior Volume	1220L
Temperature Range	-60℃～+100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Temperature Change Rate	1~3.4 ℃ / min
Panel Size	1m*2m
View Window Size	330*370(mm)
Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
Build-in Water Tank	270300450(mm)
