IP54 Waterproof Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip54 waterproof test chamber in China, featured by quality products and low price. Welcome to buy CE approved ip54 waterproof test chamber in stock here and get quotation from our factory. Contact us for discount information.



IP54 Waterproof Test Chamber includes 2 test chamber, which are IPX4 waterproof test chamber and IP5X dustproof test chambers. LIB Industry provides various modes for choose.



The pollution of external factors is a great hazard to life and property. With IP54 grade(IP54 Test Chamber), the product can protect from proper amount of dust and water sprayed from all directions.

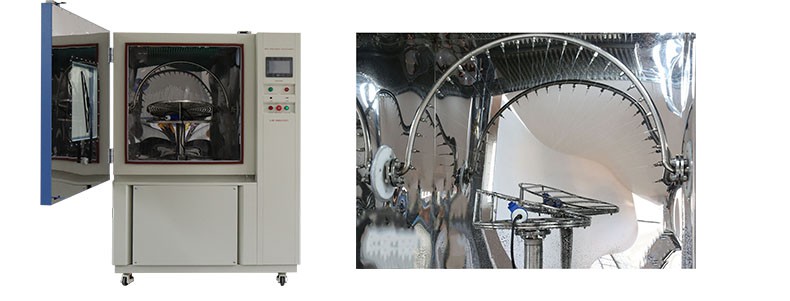

IP54 Waterproof and Dust Chamber

---

◆IP5X:Protection from the amount of dust that would interfere with the operation of the equipment.



◆IPX4:Protection from splashed water. For this test water splashed against the enclosure from any direction shall have no harmful effects.



Parameters of the IP54 Waterproof and Dust Chambers

---



IP54 Dustproof test chamber Model:DI-800



Model	DI-800
Internal Dimension (mm)	800*1000*1000
Overall Dimension (mm)	1040*1450*1960
Interior Volume (L)	800
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Specimen Power Outlet	Dust-proof socket 16A
Vacuum System	Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)





IP54 Waterproof Test Chamber Model:R-800C



Model	R-800C
Internal Dimensions (mm)	900*900*900
Overall Dimensions (mm)	1120*1460*1660
Swing Angle of Oscillating Tube	0 ~ ±180°  (Adjustable)
Turntable Rotation Speed	1r/min (Adjustable)
Oscillating Tube Radius	400mm
Water Pressure Control	Flow meter
Build-in Water Tank(mm)	370*375*950
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Observation Window	Double layer insulating glass with wiper



Advantage of the IP54 Waterproof and Dust Chambers

---

◆Controller:Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB

◆Safety Device: Over-temperature Protection; Over-current Protection; Earth Leakage Protection;Phase Sequence Protection

◆Exterior Material:A3 Steel Plate with protective coating

◆Interior Material:SUS304 stainless steel

◆Maximum Noise:65 dBA

◆Standard:IEC 60529, ISO 20653



1. Combined IP5X & IPX4 Testing – Two dedicated chambers simulate dust ingress (IP5X) and splashing water (IPX4) for complete IP54 protection verification.

2. Accurate IP5X Dust Simulation – Talcum powder circulation with controlled concentration ensures reliable dust ingress testing according to IEC60529.

3. Reliable IPX4 Water Spray System – Oscillating spray tube with multi-angle splashing accurately reproduces rain and splash conditions from all directions.

4. Durable Stainless Steel Construction – SUS304 interior and heavy-duty steel exterior ensure long-term corrosion resistance and stable performance.

5. Smart Programmable Control – Touchscreen controller enables automated test sequences, real-time monitoring, and flexible operation.

6. Global Service Support – 3-year warranty, lifetime technical support, and fast spare parts delivery worldwide.
