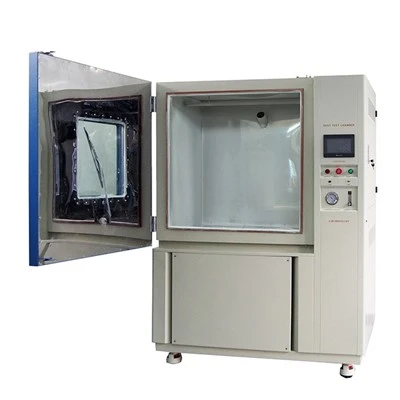

IP67 Test System
Model:IP67 Test Equipment;
Standard: IEC 60529, ISO20653;
IP Code: IP6X Test , IPX7 Test;
Controller: Programmable controller;
customizable
Maximum Noise:65 dBA;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip67 test system in China, featured by quality products and low price. Welcome to buy CE approved ip67 test system in stock here and get quotation from our factory. Contact us for discount information.
IP67 test system, mainly according to IEC60529 standard production and design of shell protection equipment, test equipment is mainly divided into IP6X sand test equipment, IPX7 water inlet test equipment.
Parameter
 |
IP6X dust test equipment
This device is DI-800, which can test the dust-proof performance of lamps, computers, printers, cameras, and other products |
| Name | IP6X dust test equipment |
|
Model |
DI-800 |
|
Internal Dimension (mm) |
800*1000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
|
Interior Volume (L) |
800 |
|
Temperature Range |
Ambient ~ +50℃ |
|
Humidity Range |
< 30% RH |
|
Normal Wire Diameter |
50um |
|
Nominal Width of a Gap Between wires |
75um |
|
Specimen Power Outlet |
Dust-proof socket 16A |
|
Vacuum System |
pressure gauge, air filter, pressure regulator, connecting tube |
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
 |
R78-1000 IPX7 immersion test equipment is mainly to simulate the product under the natural condition of immersion 1 meters, the waterproof performance of the product
|
| Name | IPX7 immersion test equipment |
|
Model |
R78-1000 |
|
Useful volume |
Diameter 1000 mm, Height 1500 mm. |
|
Material |
Material is steel plate, wall thickness 2 cm |
|
Water depth |
Water depth pressure range 1~100m, adjustable |
|
Water supply |
Automatic water supply |
|
Controller |
Programmable color touch screen type controller |
|
Open/close |
Open/close lid by pneumatic lift, with safety lock. |
|
Standard |
Comply with IEC60529 IPX7 IPX8 water tests |
