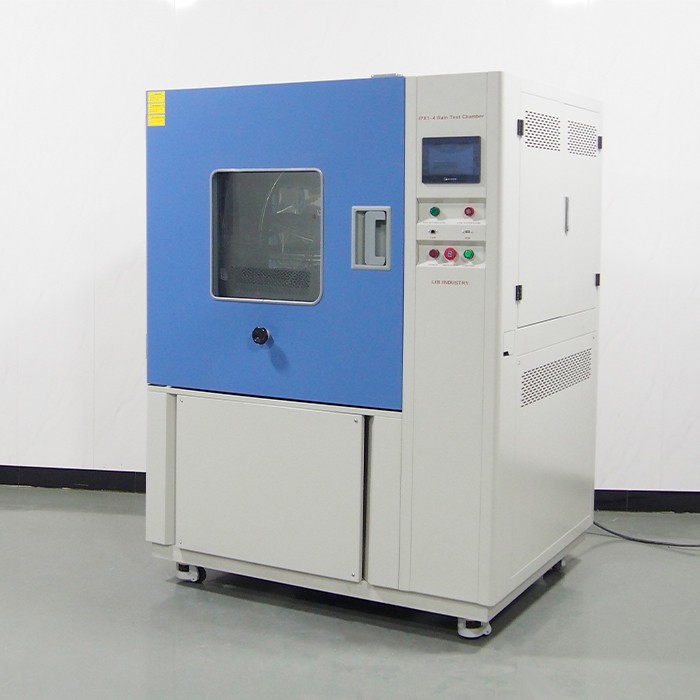

Ipx3 X4 Test Machine
Model:R-800,R-1200;
Temperature Range: Ambient ~ +50℃;
Humidity Range: Normal Wire Diameter: 50um;
Fight Time: 0 ~ 99H59M;
Door Lock: Electromagnetic lock;
urntable Rotation Speed:1r/min (Adjustable);
Power Supply:380V 50Hz;
Maximum Noise:65 dBA;
Standard:IEC 60529, ISO20653;
Name: Ipx3 x4 Test Machine;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx3 x4 test machine in China, featured by quality products and low price. Welcome to buy CE approved ipx3 x4 test machine in stock here and get quotation from our factory. Contact us for discount information.
The Ipx3 X4 test machine is an integrated model with a built-in water storage tank, which can realize the circulating water test. Easy to move, easy to migrate equipment, etc.; Appearance high-grade, more professional.
Parameters
Name | Ipx3 x4 Test Machine | |
Model | R-800 | R-1200 |
Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
Interior Volume (L) | 720 | 2740 |
Drip tray size (mm) | 600*600 | 900*900 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable) | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400mm | 600mm |
Water Pressure Control | Flowmeter | |
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | |
Build-in Water Tank(mm) | 370*375*950 | |
View Window Size(mm) | 475*475 | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Power Supply | 380V 50Hz | |
Maximum Noise | 65 dBA | |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
Standard | IEC 60529, ISO20653 | |
Detail Design
 |  |
Turntable The sample should be firmly fixed on the turntable. | Build-in lighting The light can be turned on and off at the control panel button. |
 |  |
Controller LIB also can preset the program into the controller based on user testing requirements. The set system language is English for standard. | Castor Install 4 castors for easy to move, and with brakes function. Caster height is adjustable. |
Advantage
Storage tank
At the bottom of the rain test chamber, the test water spray system, table rotation system, swing pipe swing drive device;
seal
A double-layer high temperature resistant and high tensile sealing strip is used between the door and the box to ensure the airtight test area.
The handle
water test chamber use of non-reaction door handle, easier to operate;
Castor
The bottom of the machine adopts high quality PU movable wheel;
Material
water test machine adopt stainless steel; Anti - corrosion, long service life
Hot Tags: ipx3 x4 test machine, manufacturers, suppliers, factory, cost, price, used, specification, for sale, dust testing equipment, IP66 test equipment, IP6X dust test equipment, rain box test chamber, Sand Dust IP68 Test Chamber, Spray rain test chamber
