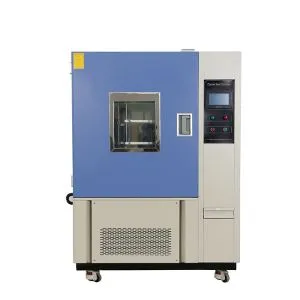

Ozone Climatic Test Chamber
Temperature: 0℃~+100℃;
Humidity: 30% -98%RH;
Ozone Concentration: 1～1000PPHM;
Sample Holder Rotate Speed: 0~10 r/min;
Ozone Gas Sensor;
Programmable Touch Screen Controller;
Safety Protection device;
Standard and Custom;
CE RoHS Certification;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ozone climatic test chamber in China, featured by quality products and low price. Welcome to buy CE approved ozone climatic test chamber in stock here and get quotation from our factory. Contact us for discount information.
Ozone Climatic Test Chamber is simulate and strengthen the ozone in the atmosphere environment, effects of ozone on the law of the rubber, rapid identification and evaluation of rubber anti-aging properties of ozone and antiozonants protective efficacy of the method, and then take effective anti-aging measures to improve the rubber products the life of reference standards: ISO1431; ASTM 1149; IEC 60903; IEC60811-403; JIS K6259; ASTM D1171.
Technical Specification
Model | OC-250 | OC-500 | OC-800 | OC-010 |
Internal Dimension (mm) | 600*600*700 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Interior Volume (L) | 250 | 500 | 800 | 1000 |
Temperature Range | Temperature Fluctuation | Temperature Deviation | Humidity Range | Humidity Deviation | Ozone Concentration | Sample Holder Rotate Speed | Airflow Rate | Clamps Tensile Stretch |
| 0℃ ～ +100 ℃ | ± 0.5 ℃ | ± 2.0 ℃ | 30% ~ 98% RH | ± 2.5% RH | 1～1000PPHM | 0~10 r/min | 0~60L/min | 5%～35% |
Functions
1. In compliance with ASTM D1171/D1149. DIN/EN 27326. DIN 53509. JIS K-6259. ISO 1431/10960
2. Ozone concentration accuracy : 2% of full scale
3. Ozone concentration range: 1-1000pphm
4 Temperature range:0 degree- +100C degree
5. Modularized ozone detection and generation systems
6. ozone environmental chamber functions: dynamic and static testing.
7. Additional options: automatic calibration, image capture, and remote calibration via video.
8.LIB INDUSTRY is ozone chamber manufacturer
Design Highlights
|
|
|  |
Air Circulation centrifuger air | Sample Holder | View Window | Electromagnetic lock |
We are one of the leading manufacturer and suppliers ozone Aging chamber .
For Rubber Ageing Test
Automotive Components
Textile Bleaching Tests
Testing As per DIN-53509/ISO 1431-1/2
Static or Dynamic tests
Any other required application
