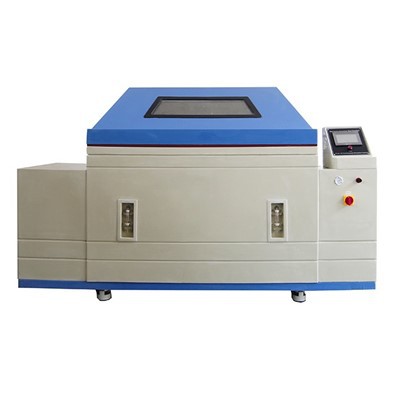

ASTM B117 Aging Chamber
Name:ASTM B117 Chamber
materials:Glass Fiber
Application:Salt Corrosion Test
Humidity Range:30% ~ 98% RH
Temp. Range:+10 ℃ ～ +90 ℃
Spray Type:Continuous / Periodic
Controller:PID controller
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of astm b117 aging chamber in China, featured by quality products and low price. Welcome to buy CE approved astm b117 aging chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB ASTM B117 aging chamber adopts tower sprayer (adjustable spire height), guide salt spray, mist material is small, natural settlement; The nozzle is salt-free, and the settling amount is adjustable. Dual pressure adjustment and overtemperature protection device.
Video
Parameter
| Name | ASTM B117 Chamber | ||
|
Model |
S-150 |
S-250 |
S-750 |
|
Internal dimensions (mm) |
470*590*400 |
640*1000*500 |
750*1100*500 |
|
Overall dimensions (mm) |
620*1400*1050 |
810*1800*1180 |
920*1900*1200 |
|
Temp. Range |
Ambient ～ +60 degree |
||
|
Temp. Fluctuation |
± 0.5℃ |
||
|
Temp. Deviation |
± 2.0 ℃ |
||
|
Humidity Range |
95% ~ 98% RH |
||
|
Salt Fog Deposition |
1～2ml / 80cm2 · h |
||
|
Spray Type |
Continuous / Periodic |
||
|
Heating Element |
Nichrome heater |
||
|
Salt Fog Collected |
Fog collector and fog measure cylinder |
||
|
Controller |
PID controller |
||
|
Material |
Glass fiber reinforced plastics |
||
|
Standard Configuration |
8 round bars and 7 V-shaped grooves |
||
|
Power |
380V 50Hz |
||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
||
Details Design
|
|
|
|
| Spray Tower | Specimen Holder | Controller |
|
|
|
Features
1. Automatic water intake function
The salt spray test chamber adopts automatic water adding system, which can automatically replenish the water level when the water level is insufficient, and the test is not interrupted.
2. Quartz nozzle
ASTM B117 salt chamber using precision glass nozzle, use 4000 hours to ensure no crystallization blocking
3. The material
The ASTM B117 aging chamber is made of glass and steel, and the advanced three-dimensional reinforcing technology is adopted inside, so the structure is strong and solid.
