Cyclic Corrosion Test Chamber
Maximum Noise:65 dBA
Standard:ASTMB117, ISO9227
Power Supply:380V 50Hz
Air Preheating:Saturated air barrel (31Liter)
Salt Fog Collected Fog:collector and fog measure cylinder
Salt Fog Deposition:1～2ml / 80cm2 · h
Spray Type:Continuous / Periodic
Temperature Sensor :PT100Ω / MV A-class
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of cyclic corrosion test chamber in China, featured by quality products and low price. Welcome to buy CE approved cyclic corrosion test chamber in stock here and get quotation from our factory. Contact us for discount information.
Cyclic Corrosion Test Chamber is different from the basic salt spray test chamber. The cyclic corrosion test chamber exposes the sample to a series of different environments in repetitive cycles that incorporate temperature, humidity, salt spray and dry.
Accelerated corrosion test methods included ASTM B117, ASTM BG85, ISO9227, IEC60068-2-52, iec61701-2, ISO7253, and many others.
SC
series corrosion chambers are upgraded to programmable controller and
Ethernet access. All models are automated and can work continuously.
various models can meet different test requirements.
▲Characteristics
Fast lead time
Ranging in size from100L to 4500L
13 different models
Types: prehension, salt fog, dry, 100% humidity
SS chamber and CCT series
Comply with IEC60068-2-52, ASTM G85
Salt spray nozzle free
▲Main parameters
| Name | Cyclic Corrosion Test Chamber | ||
| Model | SC-010 | SC-016 | SC-020 |
| Internal dimensions(mm) | 1000*1300*600 | 900*1600*720 | 1000*2000*8000 |
| Overall dimensions(mm) | 1200*2200*1400 | 1300*2500*1600 | 1420*3000*1850 |
| Interior volume(L) | 800 | 1280 | 1800 |
| Temperature range | +10℃~+90℃ | ||
| Humidity range | 30%~98%RH | ||
| Salt fog deposition | 1~2ml/80cm2h | ||
| Cooling | Mechanical compression refrigeration system | ||
| Refrigerating unit | French TECUMSEH compressor | ||
| Refrigerant | R404A | ||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
| Water supply system | Water purification system | ||
| Air Circulation | Centrifugal wind fan | ||
| Safety Devic | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | ||
| Maximum Noise | 65dBA | ||
| Standard | IEC60068-2-52, IEC61701-2，ASTM G85，ISO 7253, ASTM B117, ISO9227 | ||
| Power supply | 380V 50HZ | ||
▲Main Details
 |

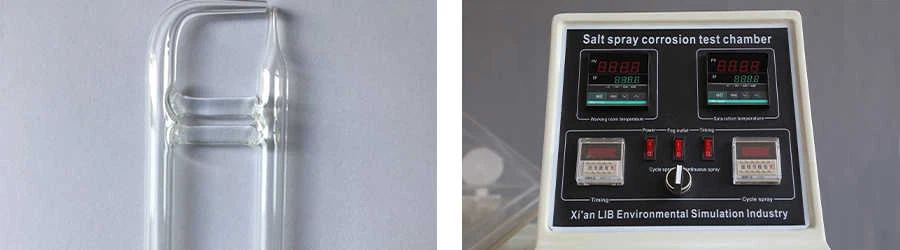

1.Industrial salt 2.Saltwater tank An external 18-liter salt solution tank is equipped with a brine mixing system to keep the solution even. |
 |
3.Salt spray device Salt corrosion test chamber tower is adjustable in height and spray volume to meet different test standards. Quartz nozzles are easy to clean and resistant to high temperatures, corrosion, and clogging. Spray pressure is 83KPA according to the standard. 4.Controller PID programmable touch screen controller, network connection computer. Can edit 120 programs in 999 segments. The set system language is English for standard. |
▲After service
At first, salt fog test chamber are produced based on 20 years product lifetime.
If customers need our engineers' on-site service, the company only needs to pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers' repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in the overseas market to get service and products.
Hot Tags: cyclic corrosion test chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, B117 Salt Spray Corrosion Test Chamber, cct chambers, Photovoltaic Panels Salt Cycle Equipment, Salt Mist Test Facility, salt spray testing machine, Solar PV Salt Spray Testing Device
