Condensed Water Test Chamber
Temperature Range: 10℃ ～ +60 ℃;
Humidity Range: 95%RH ~ 100%;
Sample shelf:1pc sample shelf + 1pc round bar ;
Water trough: Build-in water trough in testing room;
Controller: Ethernet connection, USB port;
Water supply system: Automatic water supply;
Cable hole: Dia50mm port on left side, with plug;

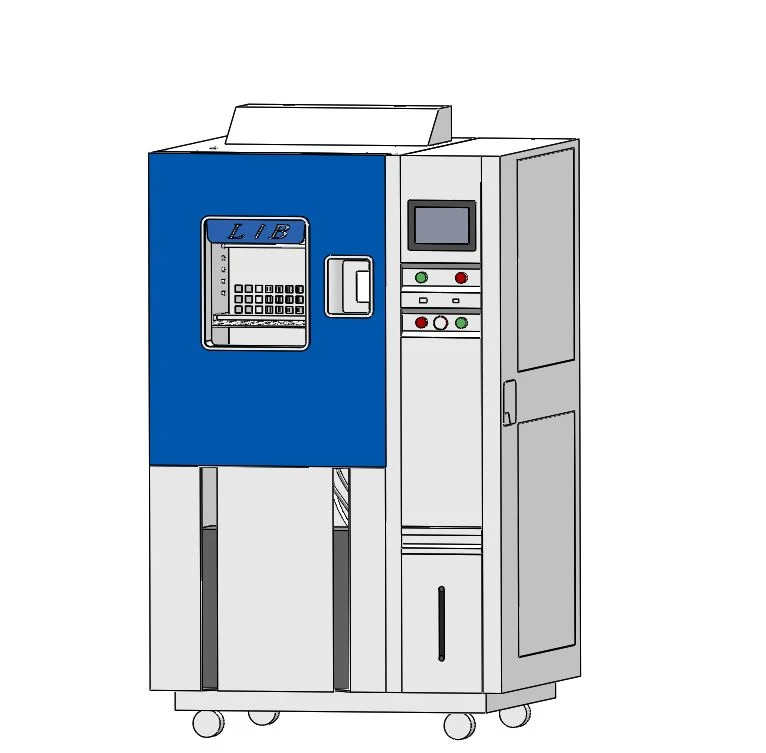

Name: Condensed Water Test Chamber;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of condensed water test chamber in China, featured by quality products and low price. Welcome to buy CE approved condensed water test chamber in stock here and get quotation from our factory. Contact us for discount information.
Condensed water test chamber,The evaporation and condensation process on the test sample is actually a distillation process to remove all impurities so tap water is used as the alternative.
It should be noted that the condensed water test chamber is different from the general temperature humidity test chamber The condensed water test is to expose the product to an environment with relative humidity above 95%~100%.
Product Parameters
Name | Condensed Water Test Chamber |
Model | ATH-100A |
Internal dimension (mm) | 400*500*500 D*W*H |
Overall dimension (mm) | 900*1050*1620 D*W*H |
Temperature range | 10℃ ～ +60 ℃ |
Humidity range | 95%RH ~ 100% |
Cooling Rate | 1°C / min |
Heating Rate | 3°C/ min |
Testing room roof | Slope shape designed, to avoid condensate drop on samples |
Sample shelf | 1pc sample shelf + 1pc round bar |
Water trough | Build-in water trough in testing room |
Controller | Programmable color LCD touch screen controller Ethernet connection, USB port |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Humidity sensor | Dry and wet bulb sensor |
Air circulation | Centrifugal wind fan |
Water supply system | Automatic water supply; Water purification system |
Exterior material | Steel Plate with protective coating |
| Standard configuration | Dia50mm port on left side, with plug |
Details
|
|

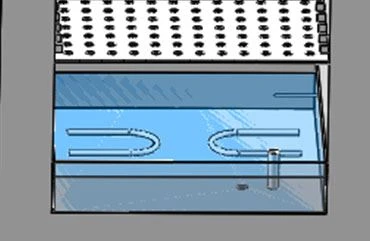

Humidity System ●Condensation humidity chamber,Heating the water reservoir to creating humidity for working room ●Avoid generating excessive steam and the water temperature should not exceed 60 ℃ | Water Re-circulation ●Water purifier: mainly purification from water source to water tank. ●The filter element is suggested to be replaced once a year. ●LIB provided filter element shipping with machine ●Water re-circulation system |
DIN EN ISO 6270-2 Test Procedure
Environmental condensation chamber
1. Put the test piece
2. Close the test chamber door
3. Turn on the heating device used to heat the water of the trough or the box to heat the working room to the air temperature required in the first stage
It must be reached within 1.5 hours, and condensate must be formed on the test piece
|  |
Application
Condensation test machine can be used to test the corrosion resistance of automotive coatings, automotive interior steel and other products.
