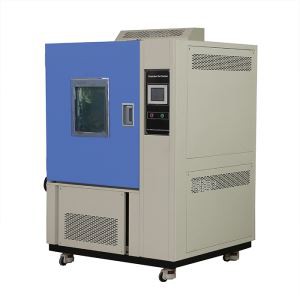

Environmental Reliability Humidity Testing Chamber
Temperature Range: -70℃～+150℃;
Humidity Range: 20% ~ 98% RH;
Humidity Deviation: ±2.5%RH;
Model: TH-100, TH-225, TH-500, TH-800, TH-1000;
Water Purification System;
Standard and Custom;
Multi - programmed controller;
Material: SUS304 stainless steel;
Name: Environmental Reliability Humidity Testing Chamber
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of environmental reliability humidity testing chamber in China, featured by quality products and low price. Welcome to buy CE approved environmental reliability humidity testing chamber in stock here and get quotation from our factory. Contact us for discount information.
Based on the temperature test, Environmental Reliability Humidity Testing Chamber is equipped with a humidifier and an evaporator to control the fluctuation of humidity, which naturally simulates the test environment of the test piece. The test piece can simultaneously perform the humidity cycle test and the temperature cycle test. Stability Temperature Chamber is equipped with other protection system devices such as circuit protection, overcurrent protection, water shortage warning and so on. The controller can set a variety of programs.
Product Parameters
| Name | Environmental Reliability Humidity Testing Chamber | ||||
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃, B : -40℃ ～ +150 ℃, C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Interior Material | SUS304 stainless steel | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Power Supply | 220V 50Hz / 380V 50Hz | ||||
Maximum Noise | 65dBA | ||||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||||
Product Parameters
◇ Cooling system: mechanical compression refrigeration system;
◇ Humidifier: external isolation, stainless steel surface evaporation humidifier;
◇ Dehumidification: evaporator;
◇ Controller: programmable color LCD touch screen controller;
◇ Humidity Sensor: dry and wet bulb sensor;
◇ Standard and Custom;
◇ Constant Temperature Chamber safety protection device;
Product Structures
View Window |
Temperature and humidity sensor |
Cooling System |
Caster |
Conform standards
IEC 68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method
IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.
☆ Free Ship
☆ Free calibration
☆ Local agent
☆ Reliable manufacturer
☆ 3 Years Warranty, Lifelong Follow-up Services
Welcome to contact if you need.
