IEC 61215 Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of iec 61215 test chamber in China, featured by quality products and low price. Welcome to buy CE approved iec 61215 test chamber in stock here and get quotation from our factory. Contact us for discount information.

Classification of IEC 61215 Test Chamber

According to IEC 61215 (10.1-10.4), solar panels need to undergo four tests, which are UV preconditioning test MQT 10, thermal cycling test, humidity freeze cycle test and damp heat test. For these four different tests, we have three different products: UV Pre-Conditioning Chamber, PV thermal cycling chamber (thermal cycling test +humidity freeze cycle test), Damp Heat Test Chamber.

It is worth noting that there are other test items in the IEC 61215 standard, which are not detailed for the time being because they have nothing to do with LIB's products.

Technical Specification

three types of IEC 61215 Test Chambers

Choose the plan that suits you best.

Name



Model

Internal Dimension(mm)

Overall Dimension(mm)

Temperature Fluctuation

Temperature Range

Temperature Deviation

Humidity Range

Humidity Deviation

UV Pre-Conditioning Chamber

UVP-04

1450*1500*2600

1900*2000*3050

± 0.5 ℃

Ambient ～ 90 ℃ ±2 ℃

±2.0 ℃

/

/

PV thermal cycling chamber



PV-04

1300*700*1350

1900*1100*1750

± 0.5 ℃

-60℃ ～ +100 ℃

± 2.0 ℃

20% ~ 98% RH

± 2.5% RH

Damp Heat Test Chamber



DHPV-04

1300*700*1350

1900*1100*1750

± 0.5 ℃

85 ℃

± 2.0 ℃

85% RH

± 2.5% RH

Product characteristics

UV Pre-Conditioning Chamber

Fast delivery.

Parameters and appearance can be customized.

CE, ROHS and other certification.

3 Years Warranty, Lifelong Follow-up Services.

view more

Workroom

• The internal material is 304 stainless steel
• 1pc PT-100 temperature sensor
• 4pcs sample holder



Sample Holder

• Allows the sample to be evenly exposed to the UV condition
• Sample holders is adjustable, to fix different size panel, easy to load samples

UV lamps

Chamber equipped with two lines of UV lamp, each lines of UV lamps works for 2pcs PV panels.

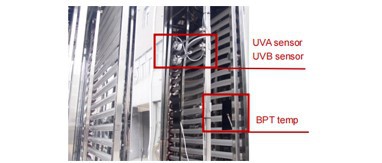

Sensors

• UVA sensor for UVA lamps irradiance detecting
• UVB sensor for UVB lamps irradiance detecting
• Install black panel to detecting BPT temperature

PV thermal cycling chamber





This equipment meets IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345 and other standards, mainly provides thermal cycling test +humidity freeze cycle test for photovoltaic panels.



Sample Supporting Racks

The sample holder is vertical and adjustable in height.



External Materials

A3 steel plate with galvanized coating.

Color can be customized.



Viewing Window

Double layer insulating glass 8cm thick, made of tempered glass.



Castor

Install 4 castors for ease moving, and with brakes function. Caster height adjustable.

Damp Heat Test Chamber

Test name: Damp Heat Test (Double 85 test)

Test Duration: 1000 h

To determine the ability of the module to withstand the effects of long term penetration of humidity.

Controller

LIB's IEC 61215 Test Chambers adopt PID programmable controller with good human-computer interface.

Automatic Water Inlet

Automatic control of the water intake of equipment, the customer can be directly connected to the laboratory faucet, avoid having to be near the lab at all times
