Laboratory Environmental Chamber
Temperature Range: -70℃～+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Humidity Deviation: ±2.5%RH;
Programmable color touch screen controller;
Model: TH-100, TH-225;
Name: Laboratory Environmental Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of laboratory environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved laboratory environmental chamber in stock here and get quotation from our factory. Contact us for discount information.
Description
Laboratory environmental chamber can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-70℃~+150℃), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.
Product Parameters
| Name | Laboratory Environmental Chamber | |||
Model | TH-100 | TH-225 | TH-500 | TH-800 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 |
Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 |
Interior Volume | 100L | 225L | 500L | 800L |
Heat load | 1000W | |||
Temperature Range | A : -20℃ ～ +150 ℃, B : -40℃ ～ +150 ℃, C: -70℃ ～ +150 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Humidity Range | 20% ~ 98% RH | |||
Humidity Deviation | ± 2.5% RH | |||
Cooling Rate | 1 ℃ / min | |||
Heating Rate | 3 ℃ / min | |||
Cooling system | Mechanical compression refrigeration system | |||
Refrigerant | Environment friendly refrigerant | |||
Humidifier | External isolation, stainless steel surface evaporation humidifier | |||
Dehumidification | Evaporator | |||
Exterior Material | Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Power Supply | 220V 50Hz / 380V 50Hz | |||
Maximum Noise | 65dBA | |||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||
Details
|
|

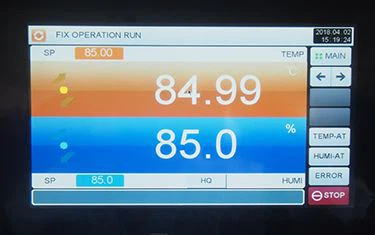

Programmable Controller 1. PIC controller for test chamber 2. Step types include: FIX and programmable 3. RS-232 interface to connect computer for output | Cable Hole Lets you attach wires and sensors to your test sample through both the left and right side of the chamber. |
|
|

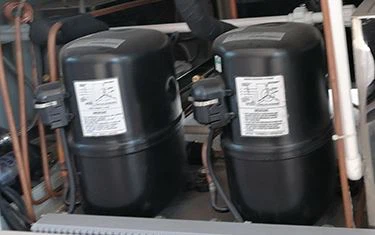

Refrigerating device 1.Cooling method 2.mechanical compression refrigeration 3.Refrigeration compressor: Semi-closed piston | Casters Oven humidity chamber has 4 casters permit easy movement and brake. |
More Models
Laboratory humidity chamber available inner capacity: 50L,80L100L, 225L, 500L, 800L, 1000L; and customized dimensions.
Applications
1. Laboratory climatic chambersimulate test environment with different temperature and humidity.
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying tes.
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation.
Test Standards
Laboratory Conditioning chamber meet the test standards, but not limited to the following standards:
◆IEC 60068-2-1 ◆IEC 60068-2-78，
◆IEC 60068-2-30 ◆IEC 60068-2-38
◆EN 14511 ◆ASTM E1171
◆IEC 61215-10.11、10.12、10.13
