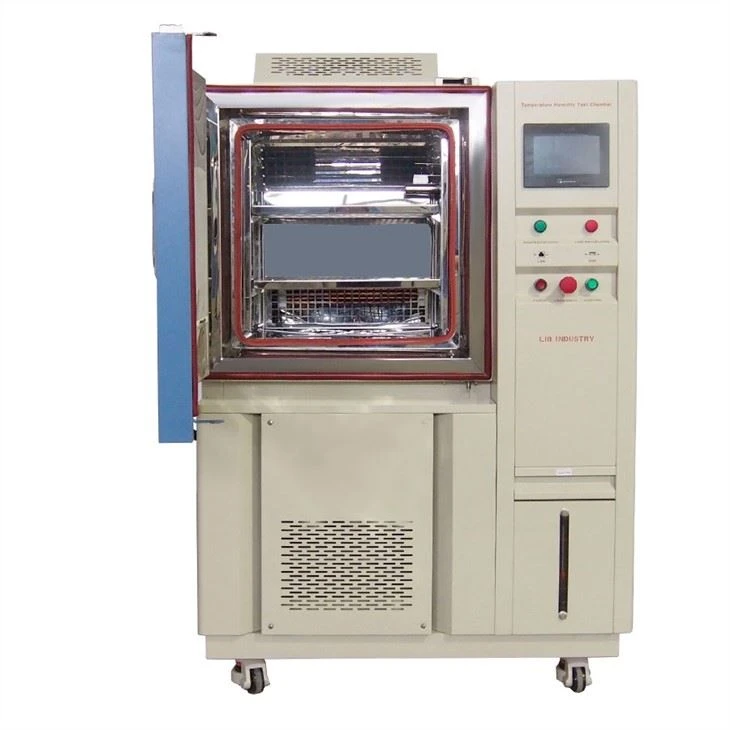

Temperature Climatic Simulation Chamber
Model: TH-500;
Interior Volume: 500L;
Temperature Range: -20℃～ +150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Humidity Range: 20% ~ 98% RH;
Maximum Noise 65dBA;
Multi - programmed controller;
Standard and Custom;
Name:Temperature Climatic Simulation Chamber;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of temperature climatic simulation chamber in China, featured by quality products and low price. Welcome to buy CE approved temperature climatic simulation chamber in stock here and get quotation from our factory. Contact us for discount information.
Temperature climatic simulation chamber , specially designed for that simulation of complex climate conditions with extremes of temperature and humidity, as well as maintaining constant conditions for long time period They operate at a temperature from -70℃ to 200℃
Video
Product Parameters
Name | Temperature Climatic Simulation Chamber |
Model | TH-500 |
Internal dimension (mm) | 700*800*900 |
Overall dimension (mm) | 1180*1350*2010 |
Temperature range | -20℃ ～+150 ℃ |
Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ |
Humidity range | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity deviation | ± 2.5% RH |
Heating rate | 3 ℃ / min |
Cooling rate | 1 ℃ / min |
Controller | Programmable color LCD touch screen controller PC Link, R-232 interface |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Cooling system | Mechanical compression refrigeration system |
Exterior material | Steel Plate with protective coating |
Thermal insulation | Polyurethane foam |
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Timing Function | 0.1~999.9 (S,M,H) settable |
Details
| |
Workroom The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors | Controller System The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment |
| |
Observation Window The observation window with conductive film and lamp can clearly observe the changes of the sample | Refrigerating System High temperature aging Chamber,Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat |
Characteristic
1. Artificial climate test machine,graceful appearance, Anti static galvanized coating
2.Rectangular paned viewing window for the observation of sample under test,with interior lights.
3. Double layer insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R449A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at
the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Industrial Application
Cold temperature climate equipment used to test various types of materials for their tolerances of heat, cold, dry, humidity.
It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.
Good Packaging
Temperature change test device with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Contact us for spare parts!
Hot Tags: temperature climatic simulation chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, pv test equipment, Condensate huimidity Test Chamber, condensed water test chamber, aging test chamber, hot air oven, controlled temperature and humidity chamber
