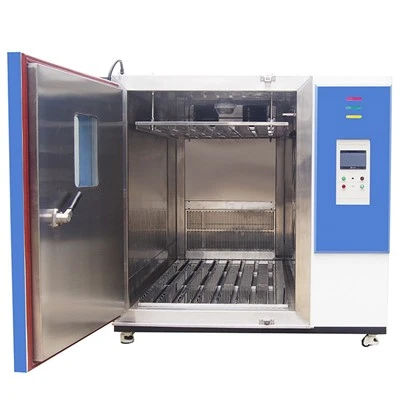

UL 1703 Humidity Test Chamber

Name: UL 1703 Humidity Test Chamber Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 254417693

Mane:UL 1703 Humidity Test Chamber;
Application:PV Panel;
Temperature: -60℃ ～ +100 ℃;
Humidity:20% ~ 98% RH;
Temperature Change Rate:1~3.4 ℃ / min;
Free calibration

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ul 1703 humidity test chamber in China, featured by quality products and low price. Welcome to buy CE approved ul 1703 humidity test chamber in stock here and get quotation from our factory. Contact us for discount information.

Classification of UL 1703 Humidity Test Chamber

According to UL 1703 (36),

Each cycle is to consist of:

a) A transition in the test chamber temperature from 25°C to 85°C (77°F to 185°F);

b) A dwell at 85°C for 20 h minimum;

c) A transition from 85°C to minus 40°C (minus 40°F);

d) A dwell at minus 40°C for 30 minutes minimum; and

e) A transition from minus 40°C to 25°C. When the temperature is 0°C (32°F) or above, the

temperature transitions of the test chamber with respect to time are not to be greater than

120°C/h (216°F/h). When the temperature is less than 0°C, the temperature transitions of the

test chamber with respect to time are not to be greater than 200°C/h (360°F/h). The total time

for the transitions and the minus 40°C dwell together is not to exceed 4 h. If the 25 °C

temperature is the start or end of the 10 cycles, any nominal room temperature in the range

15°C – 30°C (59°F – 86°F) may be used. The total cycle time is not to exceed 24 h. See Figure 36.1.

product-675-386

Technical Specification

Model	PV-04
Internal Dimension (mm)	13007001350
Overall Dimension (mm)	190011001750
Interior Volume	1220L
Temperature Range	-60℃ ～ +100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Temperature Change Rate	1 ~ 3.4℃ / Min
Panel Size	1M*2M
Panel Capacity	4 / 6 / 8 / 10 / 12 Pieces
Cooling	Cooling system	Mechanical compression refrigeration system
	Refrigerating unit	French TECUMSEH compressor
	Refrigerant	R404A, R23

Product characteristics

PV thermal cycling chamber

IEC 61215 PV Test Chamber 13

Data transmission

The UL 1703 Humidity Test Chamber can be connected to the computer in a variety of ways to keep track of real-time testing. The USB interface can be inserted into a removable hard drive up to 8 GB to download test data.
