Thermal Test Equipment

Name: Thermal Test Equipment Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 214479964

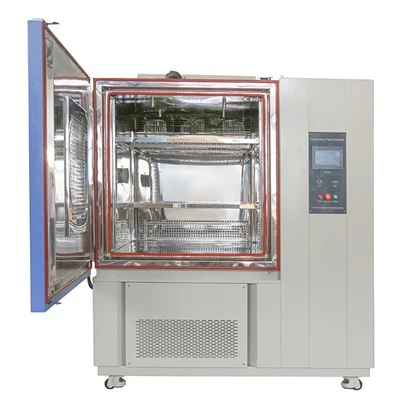

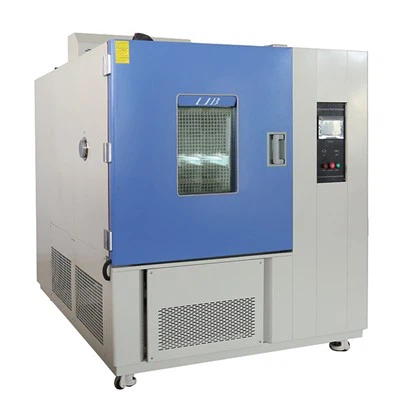

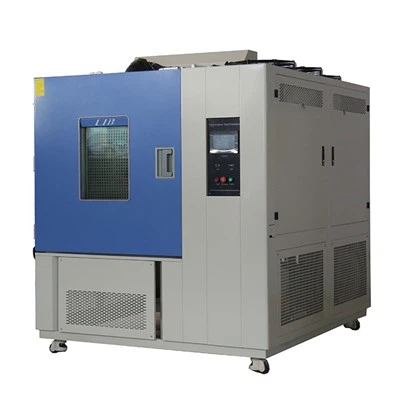

Name:Thermal test equipment
Temperature Range:-20℃ ～+150 ℃;
Model: TK-220;
Cooling Rate: 10℃/min (15℃/min);
Heating Rate: 10℃/min (15℃/min);
Temperature Fluctuation: ± 0.5 ℃;
Temperature deviation:± 2.0 ℃;
Standard and Custom;

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of thermal test equipment in China, featured by quality products and low price. Welcome to buy CE approved thermal test equipment in stock here and get quotation from our factory. Contact us for discount information.

The thermal test equipment is applicable to the safety performance test of electronic components under the condition of rapid temperature change, providing reliability test, product screening test, etc. at the same time. Through this equipment test, the reliability of products can be improved and the quality control of products can be carried out.

Video

Technical Parameters

Model			TS-162	TS-340		TS-500		TS-1000
Internal Dimensions (mm)			300300250	450450360		650650500		850850700
Overall Dimension (mm)			15608701545	171010201845		191012202265		211014202665
Interior Volume (mm)			22L	72L		211L		505L
Loading Capacity			20 kg	30 kg		50 kg		60 kg
Parameter	Pre-heat Room	Upper limit Temperature	+220℃
		Heating Time	Ambient ~ + 200℃, within 30 minutes
	Pre-cool Room	Lower limit Temperature	—75℃
		Cooling time	Ambient ~ -70℃, within 30 minutes
	Test Room	High Temperature Exposure Range	Ambient +20 ~ +200 °C
		Low temperature Exposure Range	—65 ~ -5 °C
	Temperature Fluctuation		≤±0.5℃
	Temperature Deviation		≤±3 ℃
	Temperature Recovery Time		Within 5 minutes
Structure	Cooling	Cooling System	Mechanical compression refrigeration system
		Refrigerating Unit	French TECUMSEH compressor
		Refrigerant	R404A, R23
	Heating Element		Nichrome heater
	Controller		Programmable color LCD touch screen controller
			Ethernet connection, PC Link
	Temperature Sensor		PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
	View Window Size (mm)		130*150		180*230		250*280		300*330
	Air Circulation		Centrifugal wind fan
	Safety Device		Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Material	Exterior Material		Steel Plate with protective coating
	Interior Material		SUS304 stainless steel
	Thermal Insulation		Polyurethane foam and insulation cotton
	Observation Window		Interior lighting, double-layer thermo stability silicone rubber sealing

Advantage Show

TK10-220 7°CMin Fast Change Rate Thermal Cycle Chamber (2)

Tmperature test chamber equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.

Standard: USB external memory port. Optional: RS-232, RS-485, GP-IB, Ethernet

Feature

1. Thermal test equipment touch screen control, customization, or programming

2. Wide temperature range and controllable temperature

3. Rapid Rate cycling chamber,Good heat dissipation effect and long service life of the machine

4. Safety door handle, ensure safe operation

5. The window adopts hollow glass plated with heating film

Basic Accessories

Rapid Rate chamber

Test hole, lamp, rubber plug, sample holder, heating tube
