IP Test Equipment
Name: IP Test Equipment;
IP Rating: IPX3 IPX4 Test ;
Application: Lamps, Electric cabinets;
Standard:IEC 60529, ISO20653;
Water System: Water Circulation System;
Turntable: 1r/min Adjustable;
Door Lock: Electromagnetic lock;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip test equipment in China, featured by quality products and low price. Welcome to buy CE approved ip test equipment in stock here and get quotation from our factory. Contact us for discount information.
IP equipment is used for the testing of IPX1-IPX4. Mainly used in lighting, household appliances, industrial electrical, communication cabinets, auto parts, mobile intelligence and other fields.
Specification
| Name | IP Test Chamber | |
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable）(IPX3 IPX4) | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400mm (IPX3 IPX4) | |
Controller | Programmable color LCD touch screen controller | |
Ethernet connection, PC Link, USB | ||
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Standard | IEC 60529, ISO20653 | |
LIB Rain Test Chamber

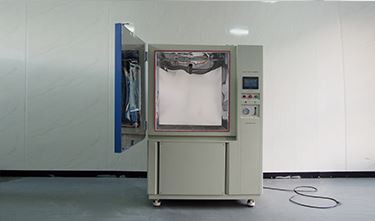

IP test chamber is divided into IP rain test machine and IP sand test chamber, LIB INDUSTRY support the build a IP laboratory and one-stop service
 |  |
| IP rain test machine | IP sand test chamber |
Details
 |  |
Oscillation tube | Turntable |
Feature
1. Can be used in workshops, laboratories, etc., for IPX1 / IPX2 / IPX3 / IPX4 waterproof test.
2. Chamber structure, recycling water, energy saving and environmental protection, no need to build a special waterproof laboratory, saving input costs.
3. There is a transparent observation window (tempered glass material) on the door, and LED lighting is installed in the box to facilitate internal observation.
4. Installed sample power outlet (AC220, 10A), sample power supply power off time can be controlled by the program: power failure (0-999min) - power (0-999min) - power outage (0- 999min), suitable for the sample to be powered on and off during the test.
