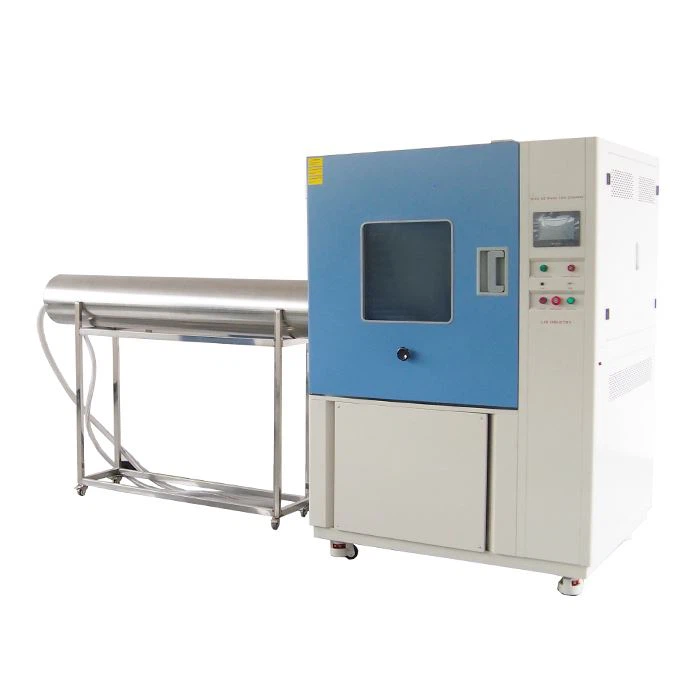

IP65 Waterproof Test Chamber
Test Standard:IEC60529 (IP6X IPX5Test);
Test Equipment:IP65 Waterproof Test Chamber;
After Sale:3 years warranty;
Application:Outdoor products, mechanical and electrical;
Model:800L,1000L,Customization;
Safe Lock: Electromagnetic lock;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip65 waterproof test chamber in China, featured by quality products and low price. Welcome to buy CE approved ip65 waterproof test chamber in stock here and get quotation from our factory. Contact us for discount information.
IP65 Waterproof Test Chamber, IP 65 protection test is a common shell sealing test, mainly including sand dust sealing test and waterproof sealing test. LIB IP test equipment can meet the testing requirements of ip 6x and ip x5.
IP65 Test
 | IPX5 tester |
standard | IEC 60529 |
Workroom dimension (mm) | Customization |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IP X5 Nozzle | 6.3 mm |
Internal Diameter of IP X6 Nozzle | 12. 5 mm |
Water Flow Rate IP X5/ IP X6 | 12. 5 L/ min ±5% / 100 L/ min ±5% |
Build-in Water Tank(mm) | Customization |
Water Supply | Water tank, booster pump, Automatic water supply, Water purification system |
 | IP6X Tester |
standard | IEC60529 |
Internal Dimension (mm) | 800*1000*1000 |
Overall Dimension (mm) | 1040*1450*1960 |
Temp. Range | Ambient ~ +50 ℃ |
Humidity Range | < 30% RH |
Normal Wire Diameter | 50 um |
Nominal Width of a Gap Between wires | 75 um |
Specimen Power Outlet | Dust-proof socket 16A |
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) |
IP65 Test
Dust test
| Ip6x: the equipment is placed in the dust tester and needs to be tested by pumping negative pressure. The tested product needs to be completely prevented from talc powder and can be used normally. |
water test
| Ipx5: the Ipx5 equipment uses a nozzle with an inner diameter of 6.3 mm. The distance between the test piece and the water spray port is 2.5 m. Spray water on each surface of the sample with a water flow of 12.5L / min (750L / h). |
After the dust-proof and water-proof test, open the shell and visually observe whether there are dust and water droplets inside the shell. If not, it is judged to have passed the test;
