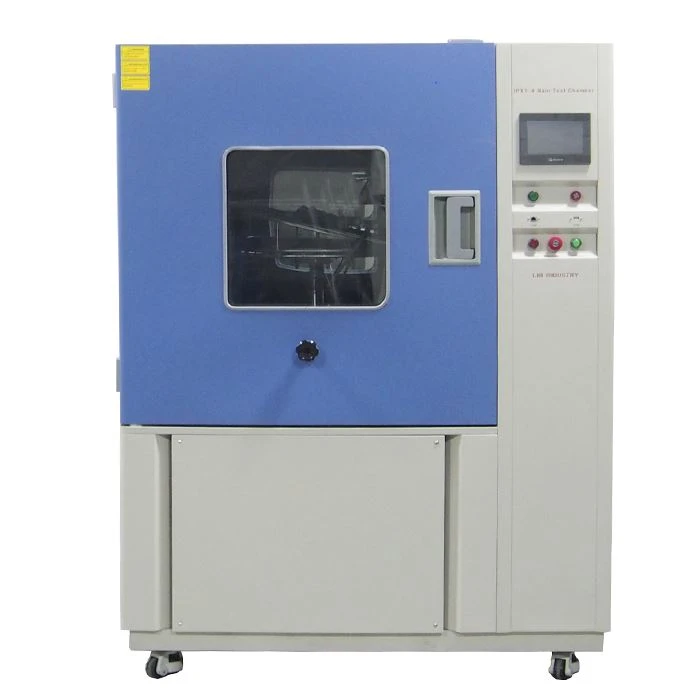

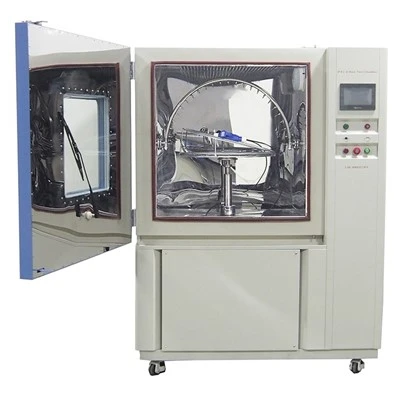

IPX4 Rain Test Chamber
Model:IPX1 IPX2 IPX3 IPX4 Test Chamber;
Standard: IEC 60529, ISO20653;
Controller: Programmable controller;
Door Lock: Electromagnetic lock;
Application:Electronic, street lamp;
Maximum Noise:
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx4 rain test chamber in China, featured by quality products and low price. Welcome to buy CE approved ipx4 rain test chamber in stock here and get quotation from our factory. Contact us for discount information.
IPX4 rain test chamber can complete IP test on one device, equipped with water recycling system to save water, automatic operation, can be completed on the controller
The rain test chamber turntable, pendulum tube and so on are made of SUS304# stainless steel plate, to ensure that the field is not green for a long time
|
|
IPX4 rain test chamber
|
Specifications
|
Model |
RD-800C |
RD-1200C |
|
|
Dimension |
Internal dimensions |
900*950*950mm -D*W*H |
1300*1350*1370mm -D*W*H |
|
Overall dimensions |
1180*1420*1920mm -D*W*H |
1540*1820*2200 -D*W*H |
|
|
IPX5 IPX6 tube dimensions |
Length is 2000mm, diameter is 325mm |
Length is 2000mm, diameter is 325mm |
|
|
IPX1 IPX2 |
Drip box |
600*600mm |
900*900mm |
|
Hole spacing |
20mm |
||
|
Hole diameter |
φ0.4mm |
||
|
IPX3 IPX4 |
Oscillating tube radius |
400mm |
600mm |
|
Spraying hole diameter |
φ0.4mm |
||
|
Hole spacing |
50 mm |
||
|
Number of holes |
25 |
37 |
|
|
Oscillating tube range |
0~ ±180° |
||
|
Swivel velocity speed of tubes |
60°/seconds |
||
|
Controller |
Programmable color display touch screen controller, PC Link with software, Ethernet interface |
||
|
Water supply system |
Storage water tank, booster pump, Automatic water supply, Water cycling system, Water purification system, Water saving |
||
|
Exterior material |
Steel Plate with protective coating |
||
|
Interior material |
SUS304 stainless steel |
||
|
Power Supply |
220V 60Hz, 1Phase |
||
Details
Programmable controller
Turntable
Water circulation system
Structure
IPX1X2 - Drip Tray
IPX1X2 test chamber the drip tray is made of stainless steel, and the drip holes are evenly distributed.
Dimensions 900*900 mm;
IPX3X4 - Oscillating Tube
IPX3 IPX4 test chamber oscillating tube radius is 600 mm
Oscillating tube range can be reached to ±45°,±60°,±90°,±180°
