IPX5 Shower
Model:IPX5 Shower;
Standard: IEC 60529, ISO20653;
Controller: Programmable controller;
Door Lock: Electromagnetic lock;
Application:Electronic, street lamp;
Maximum Noise:
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx5 shower in China, featured by quality products and low price. Welcome to buy CE approved ipx5 shower in stock here and get quotation from our factory. Contact us for discount information.

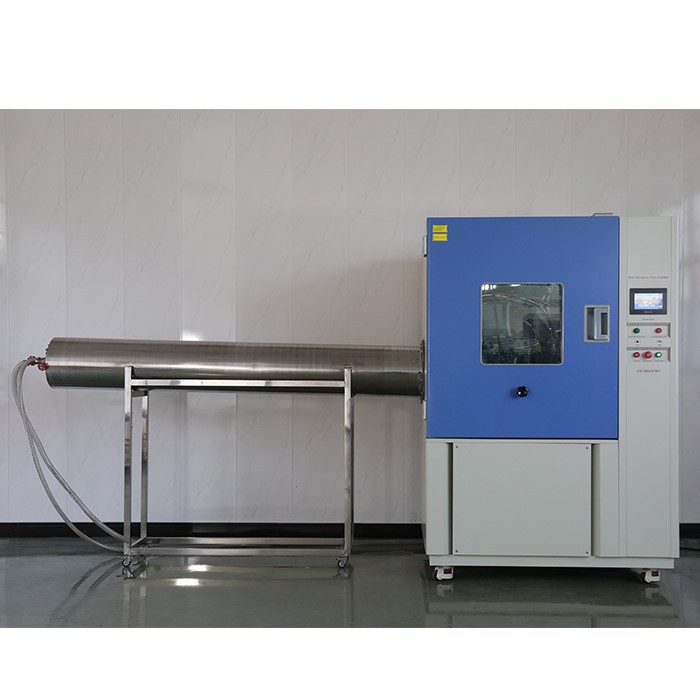

IPX5 shower is specifically designed to carry out water resistance testing on products. This test helps to determine the level of protection offered by a product against water intrusion. The chamber is made from high-quality materials, including stainless steel and tempered glass, which ensures durability and longevity.
Basic Parameter
|
Model |
R56-800 |
|
Workroom dimension (mm) |
800*800*800 |
|
External dimension (mm) |
950*3150*1800 |
|
Interior Volume (L) |
510 |
|
Diameter of Turntable (mm) |
600 |
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|
Internal Diameter of IPX5 Nozzle |
6.3 mm |
|
Internal Diameter of IPX6 Nozzle |
12.5 mm |
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Water Supply System |
Water tank, booster pump, Automatic water supply, Water purification system |
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
|
|
Observation Window |
Double layer insulating glass with wiper |
|
Power Supply |
380V 50Hz |
Details
|
|
|

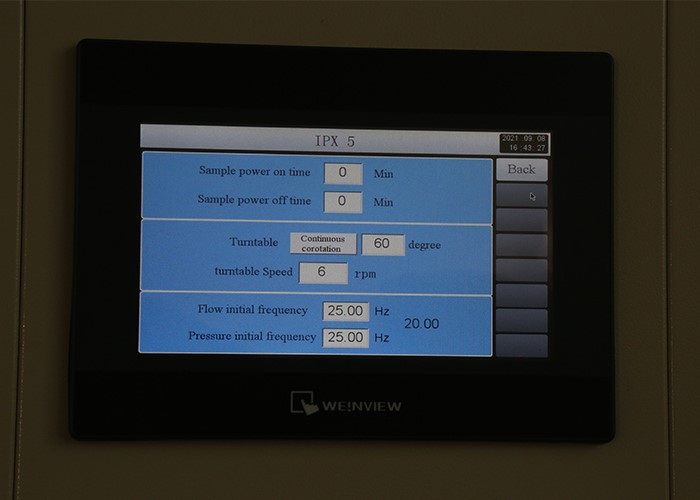

| IPX5 shower is equipped with touch screen controller |
Spraying Nozzles |
|
|
|
Feature
1. Efficient operation
The IPX5 shower is energy efficient and eco-friendly. It operates quietly and does not emit harmful fumes or gases, making it safe for use in any environment.
2. Accurate testing
The IPX5 water spraying test chamber delivers accurate and consistent results. The testing process is fully automated and can be easily programmed to deliver precise test parameters.
3. Compliance with international standards
The IPX5 shower conforms to a range of international standards, including IEC 60529, GB 4208, and many others. This ensures that products tested in the chamber are compliant with global regulations and requirements.
