IPX9K Test Device
IP Rate: IPX9K；
Water Spray Temperature: Ambient ~ +88℃；
Water Spray Pressure: 8000-10000Kpa；
Model: R9K-1200；
Spray Nozzle: four, 30 Seconds each position；
Distance from Water Spraying to Specimens: 10~15cm；
Water Flow Rate: 14L-16L/min；
Testing Platform Height: 200-400 nm (Adjustable)；
Heater Elements: Nichrome heater；
Standard: ISO20653, USCAR-2, GMW-3191；
Standard & customized；
Power Supply: 380V 50Hz
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ipx9k test device in China, featured by quality products and low price. Welcome to buy CE approved ipx9k test device in stock here and get quotation from our factory. Contact us for discount information.
IPX9K test device is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9.
LIB IPX9K test device fan jet and jet distribution for test device to verify protection against high pressure/steam jet cleaning. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.
Video
Parameters
| Name | IPX9K Test Device |
Type | R9K-1200 |
Internal Dimensions (mm) | 1000*1200*1000 |
Overall Dimensions (mm) | 1250*1700*2050 |
Interior Volume (L) | 1200 |
Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
Spray Nozzle | Four, 30 Seconds each position |
Distance from Water Spraying to Specimens | 10~15cm |
Water Pressure | 8000-10000 Kpa (Adjustable) |
Water Flow Rate | 14L-16L/min |
Test Platform Speed | 5±1 r.p.m |
Test Platform Height | 200-400 nm (Adjustable) |
Testing Platform Diameters | 600mm |
Temp. Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Power Supply | 380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃～+35 ℃ 40%~85% RH |
Standard | IEC 60529; ISO20653; DIN 40050-9; USCAR-2; GMW-3191 |
Characteristic
 | |

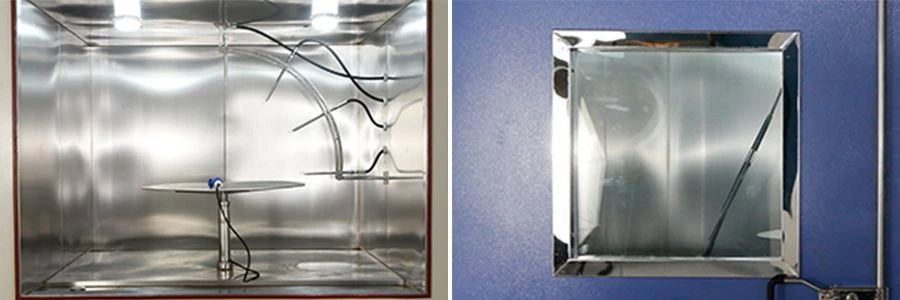

| Workroom 90 ° Angle with 4 pieces circular sprayer, Corresponding with standards. | Observation Window Multi-layer vacuum glass observation window on door with LED light inside,easy to observe the inner chamber. |
 | |

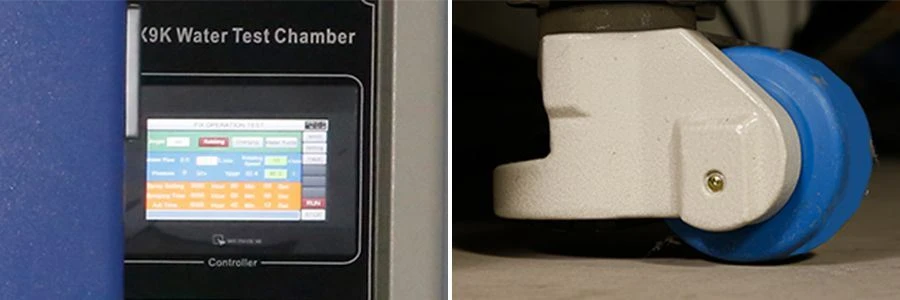

Controller Spaying flow,pressure ano temperature are programmable in Controller. | Castor 1000L IPX9K test device equipped with adjustable, lifting and moving casters |
Features
● high-quality steel plate, coating with stoving varnish.
● The chamber inner and support are made by SUS304# stainless steel.
● Adopts 7 inch touch screen and PLC core control component, easy to operation and auto control.
● Adopts high quality stepping motor, set the speed and angle by touch screen.
● IPD temperature control, set the temperature by touch screen.
● Test time: 0-999m adjustment, auto stop.
● Communication function optional, can work with PC to save the data.
There are specific requirements for the nozzle used for the testing.
●This test is identified as IPx9 in IEC 60529.
●Test duration: 30 seconds in each of 4 angles (2 minutes total)
●IPX9K test apparatus water volume: 14-16 litres per minute
●Pressure: 8-10 MPa (80-100 bar) at distance of 0.10-0.15 m
Contact us now,get free nozzle!
