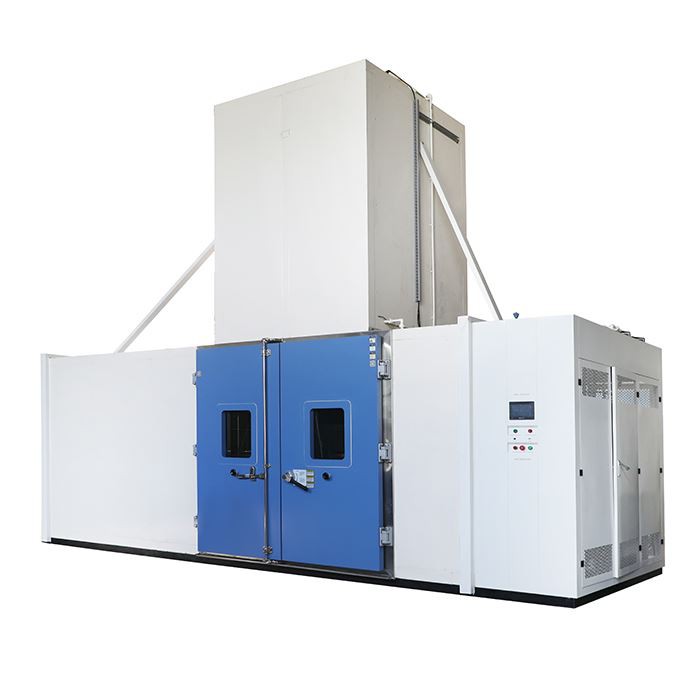

MIL STD 810h Drop Test Chamber
Name: MIL STD 810h Drop Test Chamber;
Air speed: ≥ 18m/s ;
Rainfall rate:≥ 1.7mm/min;
Turntable speed:1-7 r/min, adjustable;
Volume of water: ≥280L/m2/h;
Rainfall rate: 20.8L/min;
Standard: MIL-STD-810H;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of mil std 810h drop test chamber in China, featured by quality products and low price. Welcome to buy CE approved mil std 810h drop test chamber in stock here and get quotation from our factory. Contact us for discount information.
MIL STD 810h Drop Test Chamber is mainly applicable to electronic and electrical, aerospace, military and other scientific research units outside, lighting, signal devices and car lamps, etc., evaluation in storage, transportation/work may be exposed to rain, water spray or dripping equipment shell sealing rain performance test.
Rain Test
●Rain and blowing rain
●Intensifying test
●Drop test
Specification
| Name | MIL STD 810h Drop Test Chamber |
Model | RIM-0120 |
Internal Dimension | 1600*3460*2000 mm D*W*H |
Overall Dimension | 2580*6400*4900 mm D*W*H |
The load Turntable | 100kg |
The diameter of Turntable | 800mm |
Drip tray size | 1600*1000mm , height can be adjustable |
Air speed | ≥ 18m/s |
Rainfall rate | ≥ 1.7mm/min |
Droplet size | 0.5mm ~ 4.5mm |
Turntable speed | 1-7 r/min, adjustable |
Volume of water | ≥280L/m2/h |
Nozzle pressure | 276kpa |
Rainfall rate | 20.8L/min |
Water supply system | Storage water tank; Booster pump; |
Automatic water supply; Water purification system; | |
Cooling system | Mechanical compression refrigeration system |
Controller | Programmable color LCD touch screen controller |
Build-in Water Tank(mm) | 710*1130*1400 mm |
Door Lock | Electromagnetic lock |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Standard | MIL-STD-810H |
Details
 |  |
| Liftable drip tray | 360 degrees of the nozzle |
Features
1.rainfall intensity: 10 ~ 20cm/ hour, adjustable and set;
2.height sensing: Drop test chamber,when selecting the dripping test, it has the function of automatically detecting the height of the test sample, which can realize the following tests:
Make the drip pan automatically rain from a height of 1m; Make the drip tray automatically rain from 4.2m high, ensure the raindrop speed 9m/s;
3.nozzle diameter: MIL STD 810h test chamber,nozzle diameter is ￠0.4mm;
4. drop hole spacing: 20mm, can realize the diameter of the raindrop is 0.5 ~ 4.5mm, nozzle design should be able to make the water drop;
5.wind speed: MIL test chamber,the test chamber can produce 5 ~ 18 m/s wind speed wind;
