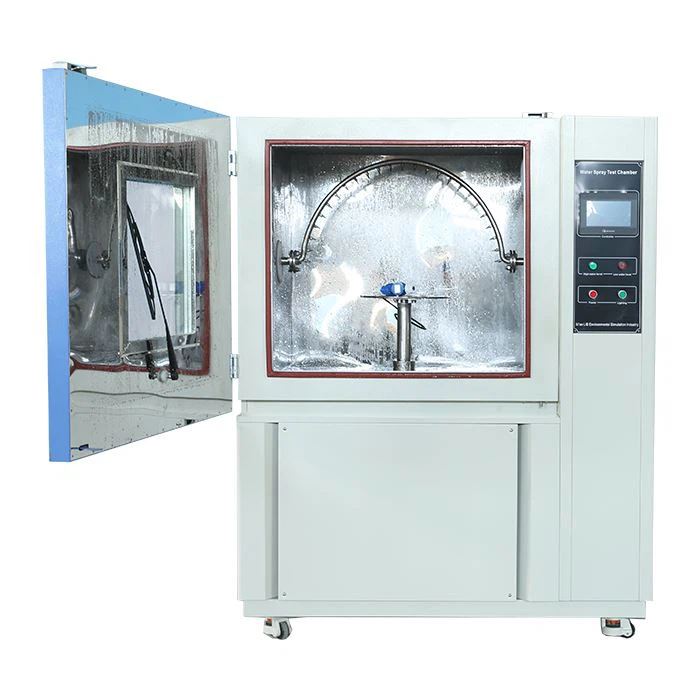

Rain Spray Test Chamber Ipx3 Ipx4
Model:R-800,R-1200;
Temperature Range: Ambient ~ +50℃;
Fight Time: 0 ~ 99H59M;
Door Lock: Electromagnetic lock;
urntable Rotation Speed:1r/min (Adjustable);
Power Supply:380V 50Hz;
Maximum Noise:65 dBA;
Standard:IEC 60529, ISO20653;
Name: Waterproof Chamber ;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of rain spray test chamber ipx3 ipx4 in China, featured by quality products and low price. Welcome to buy CE approved rain spray test chamber ipx3 ipx4 in stock here and get quotation from our factory. Contact us for discount information.
Description
Rain spray test chamber ipx3 ipx 4 used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
Applications
Water spray test chamber ipx3 has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
Parameters
| Name | Rain Spray Test Chamber Ipx3 Ipx4 | |
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
Interior Volume (L) | 720 | 2740 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400mm | 600mm |
Controller | Programmable color LCD touch screen controller | |
| Ethernet connection, PC Link, USB | ||
| Exterior Material | Steel Plate with protective coating Interior | |
| Interior Material | SUS304 stainless steel | |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
Standard | IEC 60529, ISO20653 | |
Detail Design
|
|

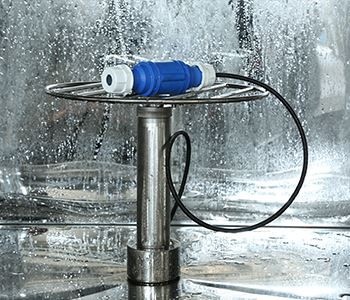

IPX3 IPX4 Oscillating Tube | Large area of visible windows, easy to observe the test specimens in the waterproof test chamber ipx 4 |
|
|
Easy to operate controller, multiple languages | Turntable can be adjusted to the IPX3 IPX4 test angle |
Types
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
Meet the standard
IP rain spray test chamber meet IEC60529-2001 (IPX1/IPX2/IPX3/IPX4/IPX5/IPX6/IPX7/IPX8 /IPX9)
After sale service
--36 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts.
--Maintenance plan.
We Support Build IP Laboratory,Contact us
