Rain Tester
Name: Rain Tester;
IP Rating: IPX3 IPX4 Test ;
Application: Lamps, Electric cabinets;
Standard:IEC 60529, ISO20653;
Water System: Water Circulation System;
Turntable: 1r/min Adjustable;
Door Lock: Electromagnetic lock;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of rain tester in China, featured by quality products and low price. Welcome to buy CE approved rain tester in stock here and get quotation from our factory. Contact us for discount information.
The Rain tester is suitable for aviation, automobile, household appliances, external lighting and signal devices, and automobile lamp shell protection.
IPX34 rain tester is mainly used to determine: the effectiveness of the protective cover or protective shell to prevent rain infiltration, the ability of the equipment to meet its performance requirements during or after rain exposure, the physical damage of the equipment caused by rain, and whether the rainwater drainage system is effective.
Video
Specification
| Name | Rain Tester | |
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900 *900 *900 | 1400 *1400 *1400 |
Overall Dimensions (mm) | 1120 *1460 *1660 | 1600 *1950 *2100 |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400mm (IPX3 IPX4) | |
Controller | Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS 304 stainless steel | |
Standard | IEC 60529, ISO 20653 | |
Rain Test Cabinets
Details
 |  |

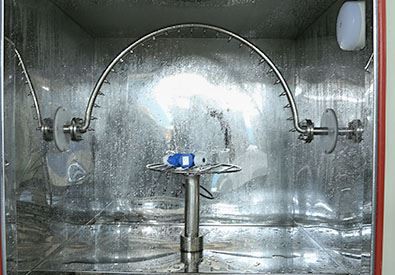

| IPX34 Oscillating Tube | Turntable |
Feature
1. The swing tube is driven by servo motor, with high precision and accurate time and swing amplitude.
2. Water supply pipeline: PPR pipes are used for equipment water supply, which are arranged according to the distribution of the box and controlled by the equipment control system cabinet.
3. The spraying cycle in the box is adjustable, and the box door is equipped with an observation window to observe the state of the sample in the IPX3 rain tester.
4. The IPX4 rain tester window wiper can clearly observe the sample
5. The rotation speed of the stage is adjustable (0.7-5 RPM)
