UL 50E Rain Spray Test Machine

Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ul 50e rain spray test machine in China, featured by quality products and low price. Welcome to buy CE approved ul 50e rain spray test machine in stock here and get quotation from our factory. Contact us for discount information.

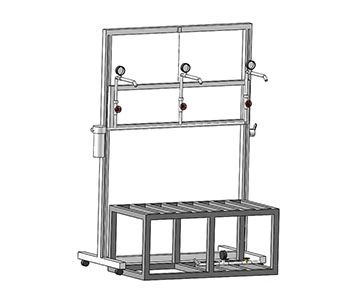

UL 50E rain spray test machine for UL rain test and 45 ° water spray test is divided into upper, lower and right three parts.

The height of the three dripping heads can be adjusted up and down freely. Select high quality materials, use advanced technology processing and forming. The inner and outer shell are made of high quality SUS 304 stainless steel plate.

The sample frame and other accessories design is reasonable and durable.

Technical Parameters

	UL 50E Rain Spray Test Machine
Type	R-UL 020
Overall Dimensions	80*150*220cm
Height adjustment range of spray device	100~200cm
Number of spray head	4 spray heads(There are 3 spray heads on the top and 1 spray nozzle on the bottom)
Nozzle spacing	71cm
Spraying Hole Diameter	Φ 5mm
Water pressure	34.5Kpa
Sample platform size	500*1500*500
Water supply system	Automatic water supply, Water purification system

The Application

UL water test machine use for outdoor lighting, outdoor lamps, automobile lamps, household appliances, electricians, electrical cabinets, power supplies, communication products and signal devices, etc. The spray device for UL rain test apparatus is reasonable in design, precise in manufacture and simple in operation. To avoid the previous similar rain test equipment manually by feeling the inaccuracy and cumbersome adjustment.

Advantage

◆UL rain test apparatus for UL test choose the electromagnetic flowmeter, It is composed of electromagnetic flow sensor and electromagnetic flow converter. Based on Faraday electromagnetic influenza should work on principle, It can be used to measure the flow of test water, Meanwhile, It will realize the flow of control adjustment display and integration as well.

◆Bracket base with universal brake casters, easy to move and fix

◆Equipment nozzle distribution strictly according to the standard design

◆Injection angle of rain test apparatus for UL rain test: 45 to the horizontal

◆The intersection point of nozzle water column is adjustable from 1000mm to 2000mm from the ground

◆Each sprinkler head is equipped with pressure gauge, measuring range :0~ 0.25mpa

◆water spray test machine adopts stainless steel nozzle, which fully meets UL standard
