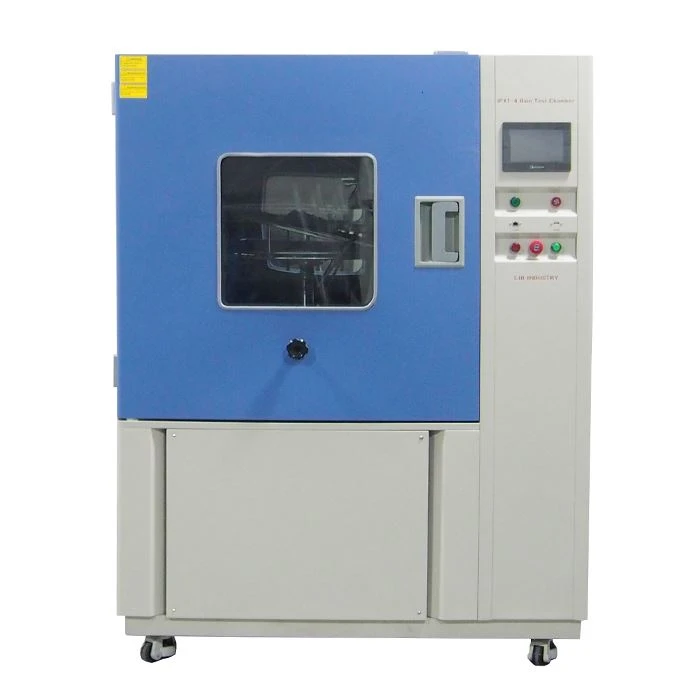

Water Proof Test Chamber
Name: Water Proof Test Chamber;
IP Rating: IPX3 IPX4 Test ;
Application: Lamps, Electric cabinets;
Standard:IEC 60529, ISO20653;
Water System: Water Circulation System;
Turntable: 1r/min Adjustable;
Door Lock: Electromagnetic lock;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of water proof test chamber in China, featured by quality products and low price. Welcome to buy CE approved water proof test chamber in stock here and get quotation from our factory. Contact us for discount information.
The main function of water proof test chamber is to test the physical and other related properties of products such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions.
After the test, it is judged whether the performance of the product meets the requirements through verification, which is convenient for product design, improvement, verification and factory inspection.water test chamber）
Specification
| Name | Water Proof Test Chamber | |
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable）(IPX 3 IPX 4) | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400mm (IPX 3 IPX 4) | |
Controller | Programmable color LCD touch screen controller | |
Ethernet connection, PC Link, USB | ||
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Standard | IEC 60529, ISO20653 | |
LIB Rain Test Chamber
 |  |
Details
 |  |
Programmable Controller | Water Circulation System |
Applicable Standard
●IEC60529-2013 "Enclosure Protection Level (IP Code)"
●EN60598-1-2014 "Lamps: General requirements and tests"
Features
●The shell material of the waterproof material test box is made of high-quality stainless steel plate with hairline treatment.
●The inner material is made of stainless steel light plate.
●The large-area visible glass door is convenient for observing the condition of the tested sample in the rain test machine.
●The bottom of the water test device adopts high-quality fixed PU movable wheels, which is convenient for users to move.
