Water Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of water test chamber in China, featured by quality products and low price. Welcome to buy CE approved water test chamber in stock here and get quotation from our factory. Contact us for discount information.



Water Test Chamber is a device that is used to test the level of water resistance and protection of electronic devices against high-pressure water jets.  IPX9K tester has nozzles that direct the water at a force of up to 100 bar, and temperatures that can exceed 80 degrees Celsius.



Video

---







Parameters

---



Name	Water Test Chamber
Internal Dimensions (mm)	1000*1200*1000
Overall Dimensions (mm)	1250*1700*2050
Water Spray Angle	0°, 30°, 60°, 90°
Water Spray Temperature	Ambient ~ +88℃ (Adjustable)
Spray Nozzle	Four, 30 Seconds each position
Distance from Water Spraying to Specimens	10~15 cm
Water Pressure	8000-10000 Kpa (Adjustable)
Water Flow Rate	14L-16L/min
Test Platform Speed	5±1 r.p.m
Test Platform Height	200-400 nm (Adjustable)
Testing Platform Diameters	600 mm
Observation Window	Double layer insulating glass with wiper
Standard	IEC 60529; ISO20653; DIN 40050-9; USCAR-2; GMW-3191



Characteristic

---

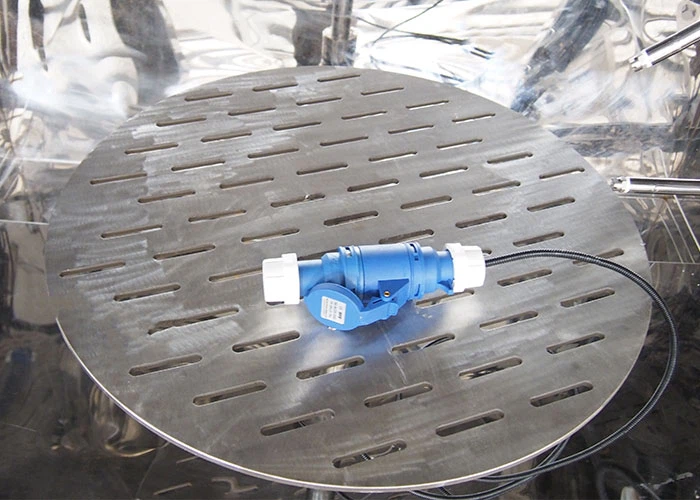

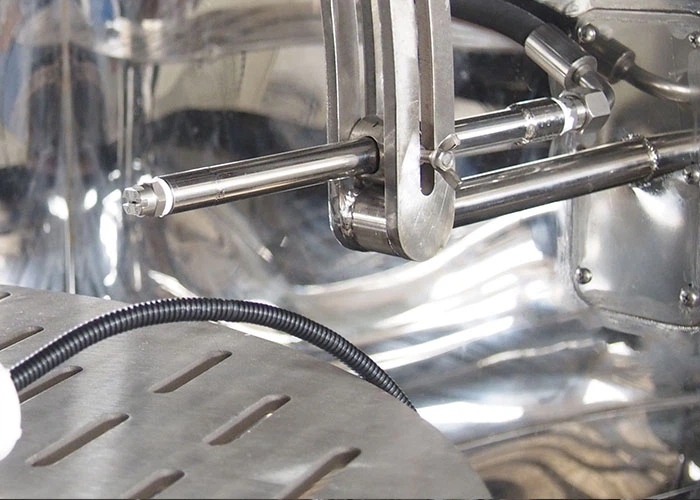

High Pressure Nozzle The inside of the nozzle is rectangular, 0.6×1.7 mm. The length of the nozzle can be adjusted.	Turntable The water test chamber adopts the sample table with adjustable speed.

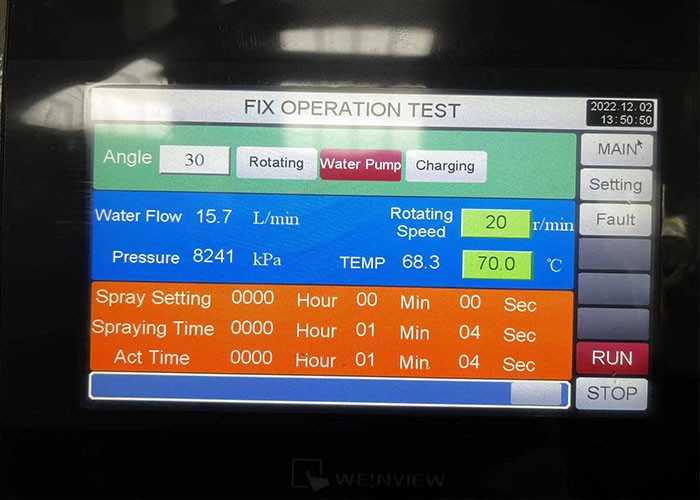

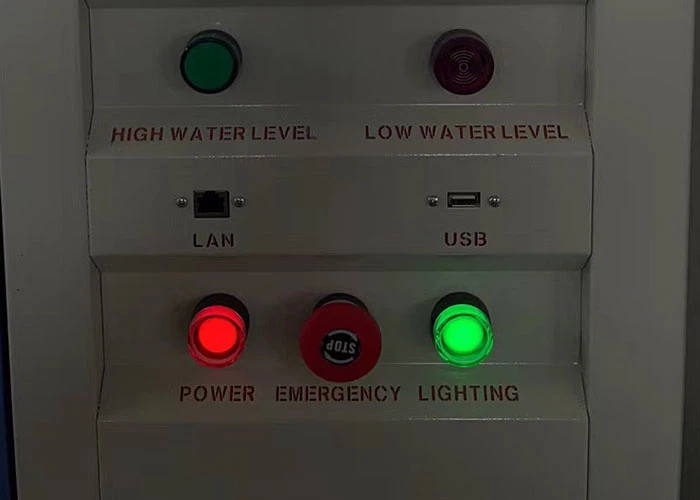

Controller	Control buttons



Other structures and components

---



1. The water test chamber adopts the high-power high-pressure flush pump imported from Italy, and the high-pressure solenoid valve specially made by an institute, which can accurately control the water pressure and water flow. The pressure error can be reduced to 0.01kpa.

2. PT 100 class A temperature sensor





More guarantee

---



1. 36 months warranty:

We will be responsible for solving non-human caused machine failure



2. International certification:

LIB's full range of products, including the water test chamber, are CE and RoHS certified and can be issued with certificates.
