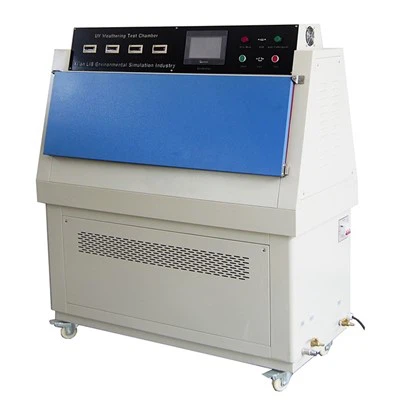

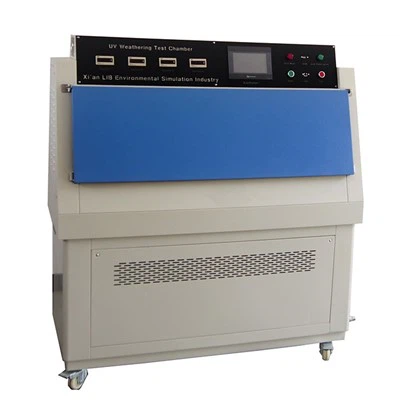

Accelerated UV Testing Equipment
Name：Accelerated UV testing equipment
UV Lamp:UVA 340,UVB313;
Irradiance:0.3~20W/㎡;
BPT:35℃～80℃;
Fast delivery;
Water Spray Cycle system ;
Environmental Conditional:5℃～+35 ℃ ≤85%RH;
Install 4 castors for standard ;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of accelerated uv testing equipment in China, featured by quality products and low price. Welcome to buy CE approved accelerated uv testing equipment in stock here and get quotation from our factory. Contact us for discount information.
Accelerated UV testing equipment uses fluorescent ultraviolet lamp as the light source (there are UVA,UVB different lamp sources),
Through the simulation of natural sunlight ultraviolet radiation and water spray, condensation, to accelerate the weathering resistance of rubber or rubber products materials, in order to obtain the weather resistance of rubber materials results report
Video
Technical Specification
|
Model |
UV-SI-260 |
|
Internal Dimension (mm) |
450*1170*500 |
|
Overall Dimension (mm) |
680*1300*1500 |
|
Specimen Holder Size (mm) |
75*150 |
|
Specimen Capacity |
56 Pieces |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
Humidity Range |
≥95% RH |
|
Bandwidth |
290 ~ 400 nm |
|
Irradiance Control |
0.3~20 W/㎡ |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Distance of Specimen and lamp |
50 mm |
|
Power Supply |
380V 50Hz |
|
Standard |
ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 |
Details
|
|
|
|

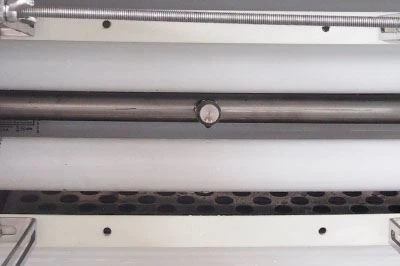

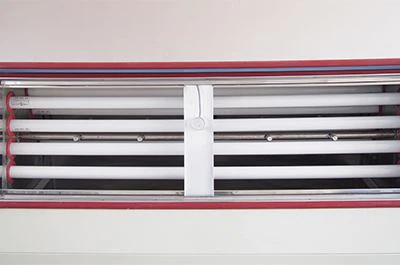

| Water Spray System | 8 UV Lamps | Outlet and Water Supply |
The UVA-340 simulates ultraviolet selection (photoaging) of sunlight by producing only the UV wavelengths of the spectrum found in sunlight.
UVB-313 for the accelerated test (artificial accelerated aging)
UVB-313(280 ~ 315 nm); The UVB-313 can provide test results quickly
Feature

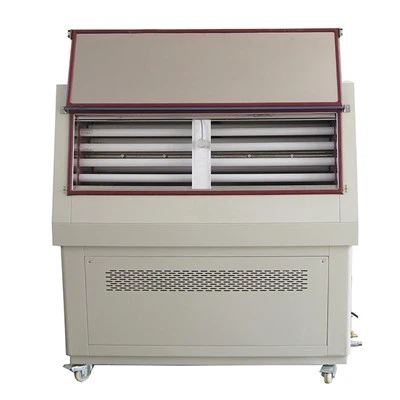

1. The structure of the aging test chamber is made of corrosion-resistant metal materials, including 8 fluorescent UV lamps, water tray, test sample rack, temperature, and time control system and indicator.
2. sample and lamp center distance: 50㎜; Lamp center distance: 70㎜
3. Accelerated UV testing equipment adopts high quality SUS304 stainless steel plate, this material has good light resistance, heat resistance, moisture resistance, suitable for long-term light aging test without discoloration, fade, no variation and other advantages.
