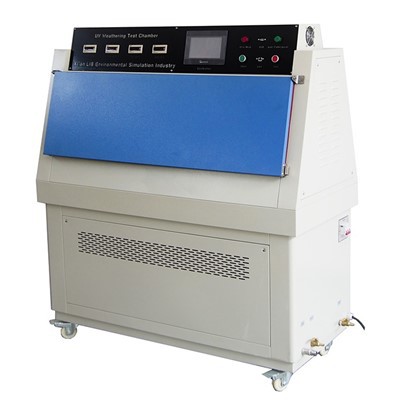

Uv Exposure Testing Chamber
ASTM G154 UV Test Machine
UV Lamp:UVA 340,UVB313;
Irradiance:0.3~20W/㎡;
BPT:35℃～80℃;
Fast delivery;
Water Spray Cycle system ;
Environmental Conditional:5℃～+35 ℃ ≤85%RH;
Install 4 castors for standard ;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of uv exposure testing chamber in China, featured by quality products and low price. Welcome to buy CE approved uv exposure testing chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB UV exposure testing chamber does not need to reproduce the entire spectrum of sunlight when simulating the damage effect of sunlight on the specific properties of materials. In some cases, only short wave UV light can be simulated. LIB offers standard and custom UV exposure testing chamber.
Video
Technical Specification
| Name | UV exposure testing chamber |
|
Model |
UV-SI-260 |
|
Internal Dimension (mm) |
450*1170*500 |
|
Overall Dimension (mm) |
680*1300*1500 |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
Humidity Range |
≥95% RH |
|
Bandwidth |
290 ~ 400 nm |
|
Irradiance Control |
0.3~20 W/㎡ |
|
Distance of Specimen and lamp |
50 mm |
|
Heating Element |
Nichrome heater |
|
Controller |
Programmable color LCD touch screen controller |
|
Ethernet connection, PC Link,USB |
|
|
Water Supply System |
Automatic water supply, Water purification system |
|
Interior Material |
SUS304 stainless steel |
|
Power Supply |
380V 50Hz |
Details
 |
 |
| Water Spray System | 8 UV Lamps |
Feature
1. UV test chamber uses 8 UV series rated power of 40W UV fluorescent tubes as the light source, distributed on both sides of the machine, each side of 4.
2 UV test Machine sample surface and UV lamp plane distance is 50 mm and parallel.
3. UV-B313.UV-A340. Light source for users to choose configuration
◆The spectral energy of UV-A340 tube is mainly concentrated around the wavelength of 340 nm.
◆The luminous spectrum energy of UV-B313 tube is mainly concentrated around the wavelength of 313 nm.
