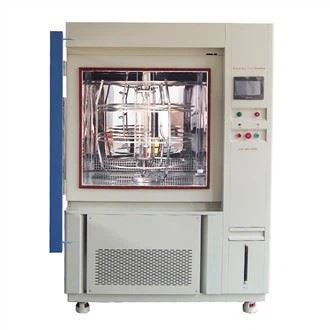

Xenon Arc Test Chambers
Xenon Arc Test Chambers
Application: Aging Test,Textiles;
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon arc test chambers in China, featured by quality products and low price. Welcome to buy CE approved xenon arc test chambers in stock here and get quotation from our factory. Contact us for discount information.
Xenon Arc Test Chambers, the radiation source is air-cooled full solar spectrum xenon lamp, the radiation intensity is automatically tracked, the blackboard temperature can be accurately controlled, and the irradiation cycle, dark cycle and spray cycle can be freely set according to relevant test standards or customer requirements.
Xenon test chamber,Water spray cycle can effectively simulate the process of temperature upheaval and rainwater erosion.
Video
Technical Parameters
| Name | Xenon Arc Test Chambers |
Model | XL-S-500 |
Internal Dimension (mm) | 500 *600*700 mm |
Overall Dimension (mm) | 1000 *2450*1990 mm |
Sample holder | Adjustable speed, 1r /min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150 W/㎡ |
Bandwidth Measurement | 300~400 nm |
Chamber Temperature Range | -40～ 100 ℃ ±2 ℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2 ℃ |
Humidity Range | 30 % ~ 98 % RH |
Water Spray Cycle | 1~9999 H 59 M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5 % |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Details
 |  |  |
| Controller | Specimen holder | Rain spray system |
 |  |
Feature
1.Turntable: the sample is fixed, and the xenon lamp test chamber adopts 360 ° rotation;
2.Refrigeration: Xenon lamp test chamber has refrigeration unit, which can control temperature and humidity
3.Xenon lamp: full spectrum, close to natural sunlight test, simulating natural sunlight
4.Water circulation: equipped with water circulation system and automatic water inlet device to save water
5.Sample rack: Xenon arc chamber is usually a rotary sample rack, which can be customized for testing small samples
Hot Tags: xenon arc test chambers, manufacturers, suppliers, factory, cost, price, used, specification, for sale, Carbon Arc testing, Light Fastnesss Accelerated Weathering Fadeometer, UV Accelerated Weathering Tester, uv chamber, weathering tester, Xenon Arc Accelerated Weathering Chamber
