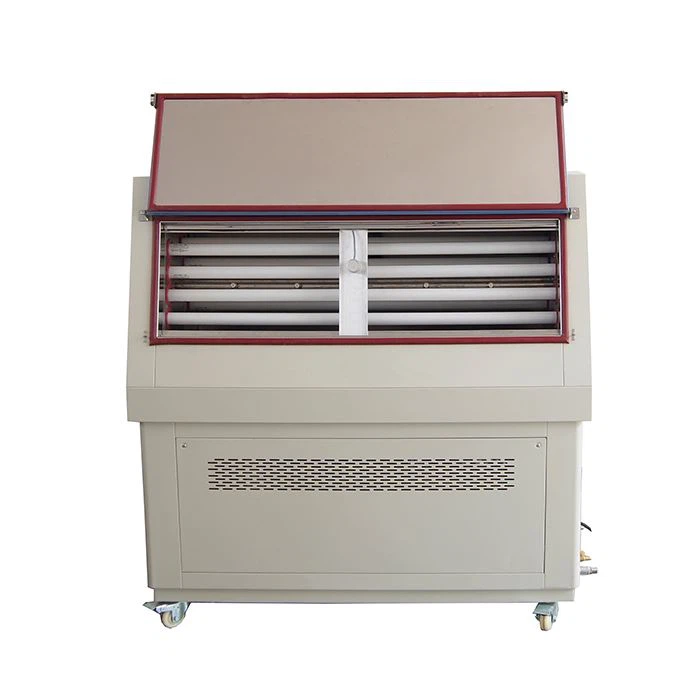

UV Weathering Machine

UV Weathering Machine
UV Lamp:UVA 340,UVB313;
Irradiance:0.3~20W/㎡;
BPT:35℃~80℃;
Fast delivery;
Water Spray Cycle system ;
Environmental Conditional:5℃~+35 ℃ ≤85%RH;
Install 4 castors for standard ;

Description

Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of uv weathering machine in China, featured by quality products and low price. Welcome to buy CE approved uv weathering machine in stock here and get quotation from our factory. Contact us for discount information.



UV Weathering Machine has the characteristics of solar UV simulation, application and maintenance cost is cheap, easy to apply, the machine equipment uses the program controller to start the test cycle time, the automation technology level is high, the reliability of the lighting effect is good, and the test result reproduction rate is high.


Video


Technical Specification


NameUV Weathering Machine

Model

UV-SI-260

Internal Dimension (mm)

450*1170*500

Overall Dimension (mm)

680*1300*1500

Irradiation Source

Fluorescent UV lamps (8) - 40 W

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃

 Humidity Range

≥95% RH

Bandwidth

290 ~ 400nm

Irradiance Control

0.3~20 W/㎡

Distance of Specimen and lamp

50mm

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller

Ethernet connection, PC Link,USB

Water Supply System

Automatic water supply,Water purification system

Interior Material

SUS304 stainless steel

Power Supply

380V 50Hz


Details


uv aging test chamber (34)uv aging test chamber (28)
Water Spray System8 UV Lamps



Accelerated Aging Chamber (8)


Feature


◆The UV test equipment uses a black aluminum plate to connect the temperature sensor, and uses a blackboard temperature meter to control the heating, and the temperature is more stable.


◆The UV aging equipment radiometer probe is fixed and does not need to be loaded and unloaded every time.


◆The radiation quantity of the UV test machine adopts an ultraviolet radiation meter that displays and measures with high precision.


◆Stainless Steel Sample Holders: 48 pcs.


◆Irradiance control: UV-B ultraviolet radiation meter, (optional UV-A ultraviolet radiation meter), can set, measure the ultraviolet radiation intensity and pass
