Xenon Accelerated Weathering Tester
Temperature Range: Ambient～100℃±2℃;
Humidity Range: 50%~98% RH;
Irradiance: 35~150 W/㎡;
BPT Temperature: 35℃～85℃±2℃;
Color fastness test;
Light aging test;
Display of diagnostic Messages;
Safety protect system
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon accelerated weathering tester in China, featured by quality products and low price. Welcome to buy CE approved xenon accelerated weathering tester in stock here and get quotation from our factory. Contact us for discount information.
LIB Xenon Accelerated Weathering Tester simulate extreme weather conditions using special environmental chambers and instruments that speed up the weathering process. Environmental effects can cause a change in color, cracking, corrosion and deterioration of a product’s exterior and interior. Xenon Weathering Test Machine investigating the weathering process of your product is an important part of determining its ability to withstand the natural forces that will occur in its lifetime.
Specification
| Name | Xenon Accelerated Weathering Tester |
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1300*1420*1800 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply |
Build-in Water Tank(mm) | 270*300*900 |
View Window Size(mm) | 250*330 |
Air Circulation | Centrifugal wind fan |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Power Supply | AC380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH |
Details Design
 |  |

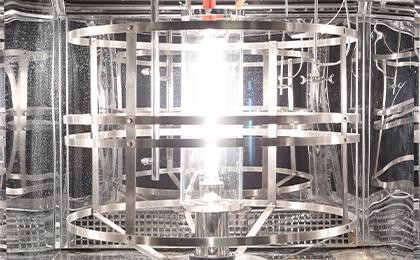

Radiometer | Xenon lamp |
 |  |
| Radiometer | Workroom |
Accelerated Weathering Test Methods
Xenon Arc Test
Accelerated Weathering Tester simulate the weathering process of indoor and outdoor sun exposure on materials. Xenon Weathering Tester test is useful in applications where paints and coatings require high quality finishes that are subject to high levels of UV degradation.
Ultraviolet (UV) Exposure Test
UV
Exposure testing uses fluorescent UV lamp weathering devices to
simulate exposure to natural sunlight. This test measures the effect of
ultraviolet light on the mechanical properties of a product.
Other Weathering Test Methods
Salt Spray, Salt Fog, & Corrosion Testing
Sand & Dust Testing
IP Rain Spray Testing
◆ ◆ ◆ ◆For More Weathering Test Methods, Click Here!
