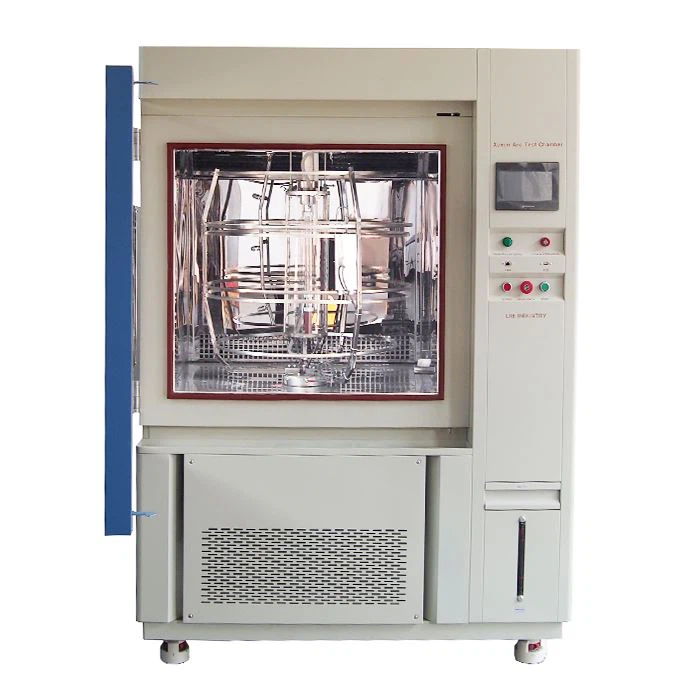

Xenon Arc Light Fastness Tester
Xenon Arc Light Fastness Tester
Application: Aging Test;
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of xenon arc light fastness tester in China, featured by quality products and low price. Welcome to buy CE approved xenon arc light fastness tester in stock here and get quotation from our factory. Contact us for discount information.
Xenon Arc Light Fastness Tester can simulate the full sunlight spectrum of xenon arc lamp to reproduce the destructive light waves in different environments, to provide the appropriate environmental simulation and accelerated test for scientific research, product development and quality control.
Video
Technical Specification
| Name | Xenon Arc Light Fastness Tester |
Model | XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*2450*1990 mm |
Sample holder | Adjustable speed, 1r/min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150W/㎡ |
Bandwidth Measurement | 300~400nm |
Chamber Temperature Range | -40～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 30% ~ 98% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5% |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Chamber Structure
 |  |  |
| Test zone | BPT | Programmable controller |
 |  |
Feature
1. Sunlight aging device,Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2.Climate simulation chamber ,Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3. Weathering test chamber equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.
4. Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.
Hot Tags: xenon arc light fastness tester, manufacturers, suppliers, factory, cost, price, used, specification, for sale, cable aging resistant testing machine, Light Fastnesss Accelerated Weathering Fadeometer, UV Accelerated Weathering Tester, uv light testing equipment, Xenon Accelerated Weathering Apparatus, Xenon Arc Accelerated Weathering Chamber
