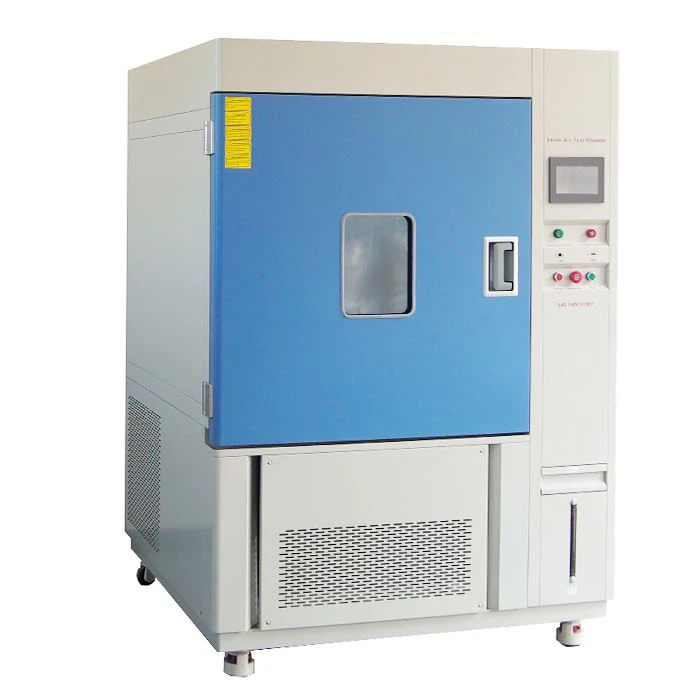

Weathering Chamber
Weathering Chamber
Application: Aging Test,Textiles;
Bandwidth Measurement:300~400nm;
300~400nm: -40~ 100 ℃ ±2℃;
Black Panel Temperature: 35 ~ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of weathering chamber in China, featured by quality products and low price. Welcome to buy CE approved weathering chamber in stock here and get quotation from our factory. Contact us for discount information.
Weathering chamber with light, rain, condensation, temperature, humidity and wind and other six environmental factors, is a more comprehensive comprehensive environmental testing machine equipment, can be six factors independently or organically combined for different types of tests.
Xenon lamp aging test chamber is suitable for electrical and electronic products, plastic, rubber and color building materials and other fields.
Video
Technical Parameters
| Name | Photostability Chamber |
Model | XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*2450*1990 mm |
Sample holder | Adjustable speed, 1r/min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150W/㎡ |
Bandwidth Measurement | 300~400nm |
Chamber Temperature Range | -40~ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ~ 85 ℃ ±2℃ |
Humidity Range | 30% ~ 98% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5% |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Details
![]() | ![]() | ![]() |
| Controller | Specimen holder | Rain spray system |
![]() | ![]() |
Feature
1. The equipment adopts a completely independent system of high temperature, humidity and light
2. With automatic water level compensation, water shortage alarm system
3. Compressor: The Xenon weathering equipment adopts fully closed French Taikang, mechanical compressor refrigeration,
4. Xenon lamp tube to the sunlight simulation is strong, is considered to be the best simulation of artificial light source
5. Xenon lamp equipment can simulate different climate test conditions, by choosing different materials of xenon lamp inside and outside the filter hood, can simulate different climate test conditions
