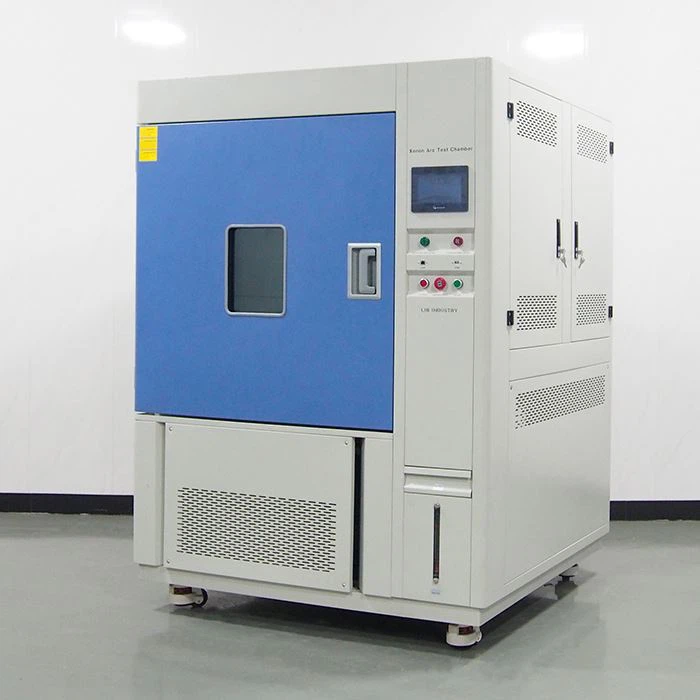

Xenon Test Chamber
Xenon Test Chamber
Application: Aging Test,Textiles;
Bandwidth Measurement:300~400nm;
300~400nm: -40～ 100 ℃ ±2℃;
Black Panel Temperature: 35 ～ 85 ℃ ;
Humidity Range30% ~ 98% RH;
Description
Xenon test chamber widely used for simulating sunlight, temperature and moisture in the form of rain, dew and humidity. Monitor and control the testing parameters and ensure the comparability and repeatability of testing result
Video
Advantage
●Controlled Irradiance
Controlled Irradiance by narrow band or broad band
●Ensure the stability of the light source
The xenon arc lamp emits high heat when working for a long time. If the lamp is not cooled in time, it will cause the lamp to turn black and affect the life of the lamp. Therefore, LIB has specially designed a set of water cooling system for the lamp, which can continuously provide 18℃ cold water to cool the lamp to ensure continuous operation of at least 1600H.
Parameter
| Name | Xenon Test Chamber |
Model | XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*2450*1990 mm |
Sample holder | Adjustable speed, 1r/min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150W/㎡ |
Bandwidth Measurement | 300~400nm |
Chamber Temperature Range | -40～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 30% ~ 98% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5% |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Chamber Structure
 |  |  |
| Test Area | BPT | Radiometer & Sensors |
 | Control Device of Simulating sunlight chamber Color touch screen, programmable controller, directly display the control light / temperature time program |
 |  |
Standards
Xenon chamber
●ASTMD529 Standard Pratice for Enclosed Carbon-Arc Exposures of Bituminous Materials.
●ASTM G154 Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Nonmetallic Materials , accelerated, accelerated weathering
