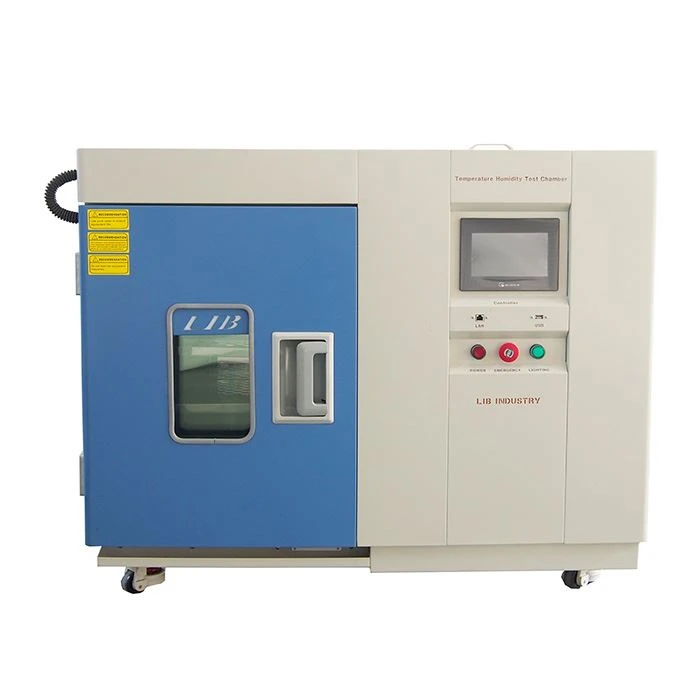

Benchtop Environmental Simulation Chamber
Temperature Range: -20℃～+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Cooling Rate: 1 ℃ / min;
Heating Rate:3 ℃ / min;
Refrigerant:R404A, R23;
Standard and Custom;
Name:Benchtop Environmental Simulation Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of benchtop environmental simulation chamber in China, featured by quality products and low price. Welcome to buy CE approved benchtop environmental simulation chamber in stock here and get quotation from our factory. Contact us for discount information.
Benchtop environmental simulation chamber also known as climate chamber or climatic chamber is a controlled, artificial chamber that simulates or mimics environmental conditions such as temperature, humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the tests sample performance.
Video
Parameters
| Name | Benchtop Environmental Simulation Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Detail
| |
Controller portable environmental simulation chamber equip microprocessor controller with RS-232 data interface. | Shelves A stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution. |
 | |
Cable Ports The test piece can be electrified by cable with a standard diameter of 50mm | Viewing Window The observation window with conductive film makes it easier to observe the changes of the measuring parts |
Advantage
1.Galvanized coating antistatic exterior
2.polyurethane foam insulation
3.SUS304 stainless steel interior
4.Compact environmental simulation chamber equip Floor drain
5.Watching window
6.50mm testing hole
Features
1.Bipolar compressor refrigeration
2.Environmental protectionRefrigerant (R404A R23 R449A R508B)
3.mini environmental simulation chamber equip humidification system
4.Multi-element, independent proportional electric heating
5.PT 100 Temp sensor
6.RH sensor/Capacitive sensor
7.Condensate evaporation
8.Switched interior LED lighting
9.Heavy duty door handle
10.Magnetic door gasket for positive seal
Welcome to contact us if any.
Hot Tags: benchtop environmental simulation chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, BenchTemperature Humidity Chamber, Portable Cooling Environmental Chamer, Small Environmental Test Chamber, Portable Temperature Chamber, BenchTemperature Humidity Environment Test Chamber, Benchtop Temperature Humidity Chamber
