Mini Environmental Chamber
Low Temperature :-20℃/-40℃/-70℃;
Heating rate:3 ℃ / min;
Cooling rate:1 ℃ / min;
Humidity Range:20% ~ 98% RH;
Cooling Rate:1 ℃ / min;
Controller:Programmable color LCD touch screen controller;
Name: Mini Environmental Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of mini environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved mini environmental chamber in stock here and get quotation from our factory. Contact us for discount information.

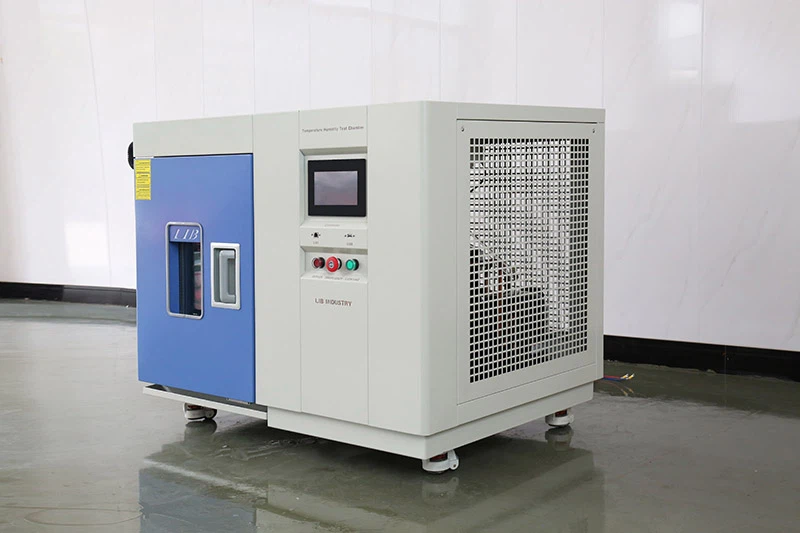

Mini Environmental Chamber provides an economical and space-saving solution for a variety of testing requirements. The chamber's interior size is 50L and 80L,models use 220V power, Mini temperarture environmental chamber meets the needs of even the smallest scale product testing while ensuring quality throughout the entire process.
1.Lowest temperature: -20°C /-40°C /-70°C
2. Highest temperature: 150°C
3. Humidity range: 20 to 98% RH
4. Chamber size: 50L/80L
Technical Parameter
| Name | Mini Environmental Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Detail

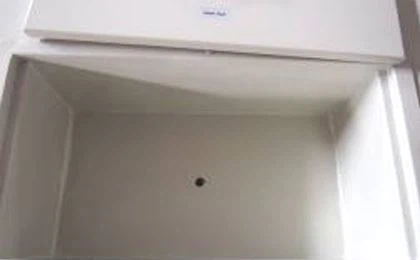

Mini humidity environmental chamberis made of high quality materials, and the design is convenient
|
|
PLC controller ● Programmable color display touch screen controller. ● Buit-in standard and program, programs reach to 999 groups and 999 sections. ● RS-232 /RS-485 interface, PC Link, LAN network, APP. ● Multi-language system: English, Polish language, Turkish, Portuguese, Spanish, French, Russia, Chinese. | Build-in Water Tank ●The water stored in the built-in water tank meets the needs of the test. When there is a low water level, it will alarm to indicate that water needs to be added. At this time, it is necessary to add enough water till to the high water level. |
Advantage
▶50L&80L type:space saved in the laboratory.
▶Complete functioning:Meet high and low temperature testing, humidity testing, calibration, storage conditions.
▶Benchtop design: Place it on your personal desk and observe samples at any time.
▶Reasonable price: Most economical and affordable choice
Service
Mini environmental test chamber has professional after - sales service.We provide 3 Years Warranty, Lifelong Follow-up Services.
▶we will supply solutions to you with 24 hours.
▶On site service
▶Video training service
Contact me now,Get 3% discount
Hot Tags: mini environmental chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, BenchTemperature Humidity Environment Test Chamber, Benchtop Temperature Humidity Chamber, Mini Climatic Test Chamber, Portable Compact Envoiromental Test Chamber, Small Environmental Simulation Chamber, Stability Mini Small Environmental Chamber
