Hot And Cold Shock Chamber
Name:Hot and cold shock chamber
Temperature Range:-65℃ ～+200℃;
Model:TS-162/TS-340...
Cooling Rate: 10℃/min (15℃/min);
Heating Rate: 10℃/min (15℃/min);
Temperature Fluctuation: ± 0.5 ℃;
Temperature deviation:± 2.0 ℃;
Standard and Custom;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of hot and cold shock chamber in China, featured by quality products and low price. Welcome to buy CE approved hot and cold shock chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB hot and cold shock chamber complies with IEC standards and provides a stable and rapid thermal conversion for thermal shock testing. Its precise temperature control, wide temperature range and powerful customization options quickly make it ideal for thermal shock testing.
Product Parameters
|
Model |
TS-162 |
TS-340 |
TS-500 |
TS-1000 |
|
Internal Dimensions (mm) |
300*300*250 |
450*450*360 |
650*650*500 |
850*850*700 |
|
Overall Dimension (mm) |
1560*870*1545 |
1710*1020*1845 |
1910*1220*2265 |
2110*1420*2665 |
|
Interior Volume (mm) |
22L |
72L |
211L |
505L |
|
Loading Capacity |
20kg |
30kg |
50kg |
60kg |
|
Upper limit Temperature |
+220℃ |
|||
|
Heating Time |
Ambient ~ + 200℃, within 30 minutes |
|||
|
Lower limit Temperature |
-75℃ |
|||
|
Cooling time |
Ambient ~ -70℃, within 30 minutes |
|||
|
High Temperature Exposure Range |
Ambient +20 ~ +200 °C |
|||
|
Low temperature Exposure Range |
- 65 ~ -5 °C |
|||
|
Temperature Fluctuation |
≤±0.5℃ |
|||
|
Temperature Deviation |
≤±3 ℃ |
|||
|
Temperature Recovery Time |
Within 5 minutes |
|||
|
Cooling System |
Mechanical compression refrigeration system |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
Product Points
|
|
|
|
PID Controller The test program can be freely adjusted and set through the controller or use a pre-set fixed program
|
Remote control Through Wi-Fi signal, laboratory networking and other ways to connect your computer to the controller of Hot and cold shock chamber, you can remotely control and monitor the machine |
|
|
|
|
Cable Hole There is a test hole above the basket to meet the requirements that the test part is powered on or connected to other cables |

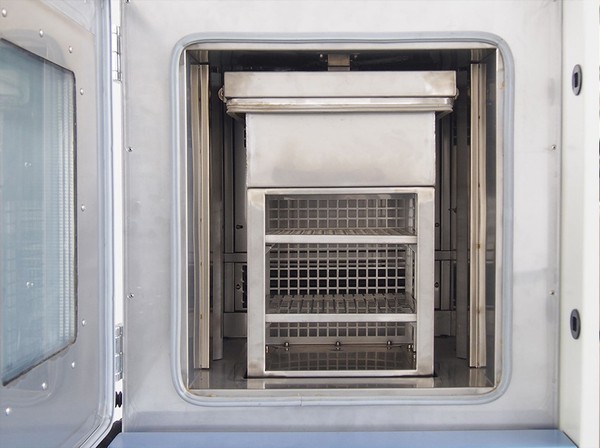

Basket The test sample is placed in the basket and quickly switched between the hot and cold chambers along the slide rail |
Features
Four casters are installed on the bottom of the machine to move the machine, with non-slip locks.
Safety Device: Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection.
Choose different cooling methods according to the temperature requirements: air-cooled or water-cooled.
Noise below 65 decibels
|
|
|
