Portable Temperature Chamber
Temperature Range: -20℃~+150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Temperature Deviation: ± 2.0 ℃;
Humidity Range: 20% ~ 98% RH;
Cooling Rate: 1 ℃ / min;
Heating Rate:3 ℃ / min;
Multi - programmed controller;
Standard and Custom;
Name: Portable Temperature Chamber
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of portable temperature chamber in China, featured by quality products and low price. Welcome to buy CE approved portable temperature chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB industry thanks to its wide experience, has developed a huge range of products to test all type of specimen and to detect unpredictable future defects that may arise after years of operation.
Portable Temperature Chamber provide high performances in limited space. Small footprint, easy installation, low power consumption, low noise level and full basic features including the inspection windows, makes this chamber the ideal choice. A compact unit easy to be installed in any R&D Department capable of testing small components and products.
Parameters
Portable cold temperature chamber has 27+different models, depending on the volume chosen, starting with 50 l model up to 1000 l model, to fit each customer needs.
| Model | Volume | Temperature Range | Humidity Range |
| TH-50 | 50L | -20℃ ~ +150 | 20% ~ 98% RH |
| TH-80 | 80L | -40℃ ~ +150 ℃ | |
| -70℃ ~ +150 ℃ |
Name | Portable Temperature Chamber |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 20% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Cooling Rate | 1 ℃ / min |
Heating Rate | 3 ℃ / min |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Refrigerant | R404A, R23 |
Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link |

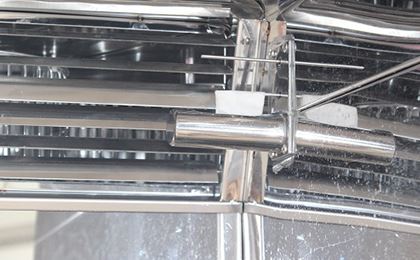

Air Circulation | Centrifugal wind fan |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Power Supply | 220V 50Hz / 380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃~+35 ℃ ≤85% RH |
Details
Portable control temperature chamber uses high-quality raw materials to ensure product quality
|
|

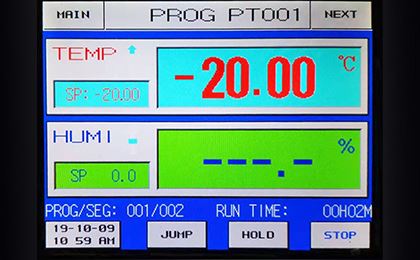

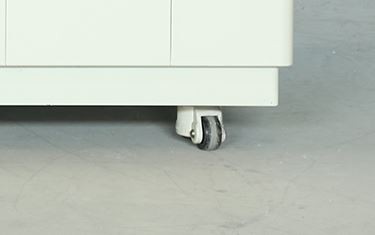

Castor portable climate temperature chamber Install 4 castors for ease moving, and with brakes function. Caster height adjustable. | Controller Programmable color touch screen type 120 programs, 99 steps perprogram RS232 for PC link More option function:Multi-language display, PC link,USB, App |
|
|

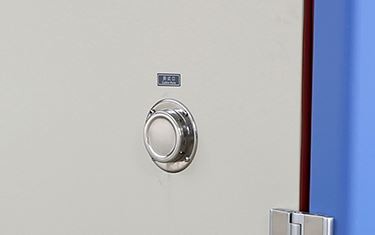

Cable hole Internal diameters 50mm, 125mm or custom; Rubber sealing; Stainless steel cover; Supply power to workroom's specimen, to better finish testing Beautiful | Temperature and Humidity Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees. |
Complete Basic Configuration
Inspection window
Ecological refrigerant
Internal lighting
Interfaces: Ethernet port for connection to the remote control system and RS232
Digital min. /max. thermostat: with independent probe, completely settable curve
Air condenser
Auxiliary contact
Swivel castors
