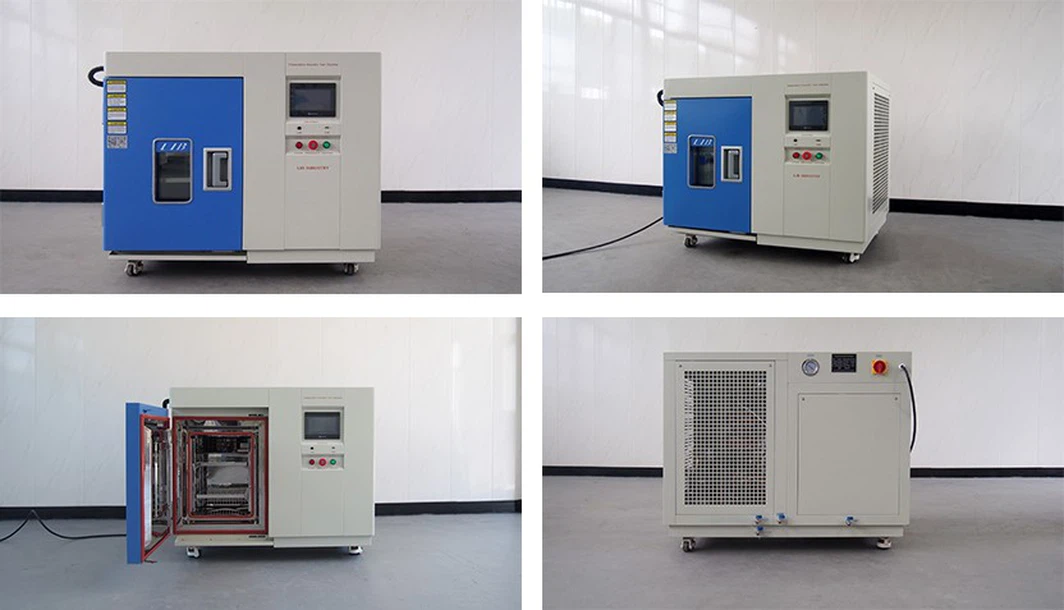

Benchtop Temperature Humidity Environment Test Chamber

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of benchtop temperature humidity environment test chamber in China, featured by quality products and low price. Welcome to buy CE approved benchtop temperature humidity environment test chamber in stock here and get quotation from our factory. Contact us for discount information.



Benchtop Temperature Humidity Environment Test Chamber is mainly used in the fields of aviation, aerospace, information, electronics and other fields to determine the environmental adaptability and reliability tests of instruments, electrical products, materials, components.

Environment Test Chamber under high temperature, and low temperature. The test piece measures the electrical performance parameters.



 Features

---

• 1. high low temperature chamber External pressure-type box structure, stainless steel inner liner, reasonable air circulation system and layout of heating and refrigerator

• 2. Imported refrigeration units and key accessories are imported international brands to improve operational reliability

• 3. Humidity Test Chamber,The central controller adopts imported touch screen man-machine interface with high accuracy;

• With protection function.



Video

---





 Basic Parameter

Model	TH-50		TH-80
Internal Dimension	320*350*450 (mm)		400*400*500 (mm)
Overall Dimension	800*1050*950 (mm)		900*1100*1000 (mm)
Interior Volume	50L		80L
Temperature Range	Model A:-20℃ ~150℃      Model B:-40℃ ~150℃ Model C:-70℃ ~150℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
View Window Size	150*120 (mm)
Build-in Water Tank	150*350*180 (mm)





 Application







 Standard

---

• IEC60068-2-1 : Cold

  IEC60068-2-2 : Dry heat

  ISO16750-4 5.3 : Road vehicles (temperature cycling)

  IEC60068-2-78 : Damp heat, steady state

  IEC60068-2-38 : Composite temperature/ humidity cyclic test
