Environmental Chamber
Name:Environmental Chamber;
Model: TH-800;
Interior Volume: 800L;
Temperature Range: -20℃～ +150 ℃;
Temperature Fluctuation: ± 0.5 ℃;
Humidity Range: 20% ~ 98% RH;
Maximum Noise 65dBA;
Multi - programmed controller;
Standard and Custom;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of environmental chamber in China, featured by quality products and low price. Welcome to buy CE approved environmental chamber in stock here and get quotation from our factory. Contact us for discount information.

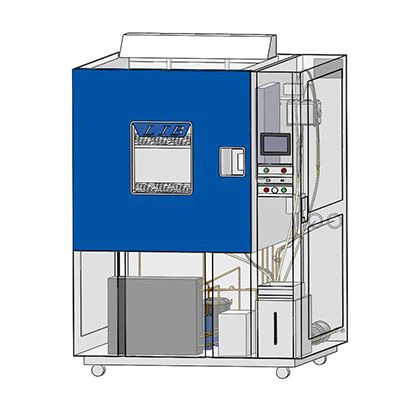

Environmental chamber,The heating system, refrigeration system, humidification system and dehumidification system are integrated into this environmental testing equipment, allowing the one machine to reproduce various conditions including high temperature, low temperature, high humidity, low humidity under the dynamic or steady-state control and monitoring.
Video
Product Parameters
Name | Environmental Chamber |
Model | TH-800 |
Internal dimension (mm) | 800*1000*1000 |
Overall dimension (mm) | 1280*1550*2110 |
Temperature range | -20℃ ～+150 ℃ |
Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ |
Humidity range | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity deviation | ± 2.5% RH |
Heating rate | 3 ℃ / min |
Cooling rate | 1 ℃ / min |
Controller | Programmable color LCD touch screen controller |
PC Link, R-232 interface | |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Refrigerant | Environmental refrigerant |
Humidifier | External isolation, stainless steel surface evaporation humidifier |
Exterior material | Steel Plate with protective coating |
Thermal insulation | Polyurethane foam |
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Timing Function | 0.1~999.9 (S,M,H) settable |
Details
|
|
Controller System | Cable Hole |
Military Standards
 | Cold temperature chamber ●MIL-STD-810F-507.4 humidity ●MIL-STD-810F-501.4 high temperature ●MIL-STD-810F-502.4 low temperature ●MIL-STD883C test method 1004.2 temperature and humidity cycling test ●MIL-STD810D test method 502.2 ●MIL-STD810 test method 507.2 procedure 3 |
 |  |
Freezing System
High low temperature chamber
A. Compressor: Full-density compressor imported from France
B. Refrigerant: Environmentally friendly refrigerant R449A, R508B,R404A
C. Condenser: Fin-type with cooling motor
Please feel free to contact us for more details on the relative humidity chamber, price, lead time, payment terms, shipment methods, etc.
