Lab Humidity Chamber
Name: Lab Humidity Chamber;
Model: TH-100/TH-225/TH-500;
Temperature Range: 70℃ ～ +150 ℃;
Controller: Programmable controller;
Ethernet connection, PC Link
Heating Rate3 ℃ / min
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of lab humidity chamber in China, featured by quality products and low price. Welcome to buy CE approved lab humidity chamber in stock here and get quotation from our factory. Contact us for discount information.
Lab humidity chamber is test equipment that detects whether the adaptability and characteristics of the product itself have changed.
Environmental test chamber used for materials that may soften, reduce performance, change properties, potential damage, and oxidize.
Video
Main Parameter
| Name | Lab Humidity Chamber | |
Model | TH-100 | TH-225 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 |
Interior Volume | 100L | 225L |
Heat load | 1000W | |
Temp. Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temp. Fluctuation | ± 0.5 ℃ | |
Temp. Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Refrigerant | Environmental refrigerant | |
Controller | Programmable color LCD touch screen controller | |
Water supply system | Automatic water supply, Water purification system | |
Humidity Sensor | Dry and wet bulb sensor | |
Exterior Material | Steel Plate with a protective coating | |
Interior Material | SUS304 stainless steel | |
Power Supply | 220V 50Hz / 380V 50Hz | |
Maximum Noise | 65 dBA | |
Details
 |  |

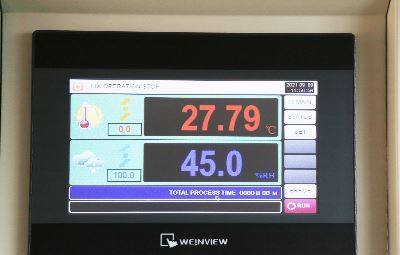

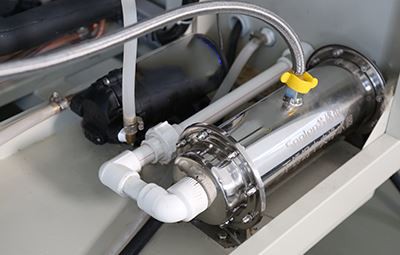

Programmable controller | water circulation system |
 |  |
Parameter
Parameter of humidity chamber
●Capacity: 50L~100L and above 1000L.
●Low temperature optional: -80°C, -70°C, -60°C, -40°C, -20°C
●High temperature optional: +150°C, +180°C, +200°
●Humidity range: 20%~98%RH
Application
Temperature test chamber, the parts and materials used in the product may be cracked, embrittled, stuck in moving parts, and changed in characteristics at low temperatures.
Fillers and sealing strips soften or melt, the stability of electronic circuits decreases, insulation is damaged, and the aging of polymer materials and insulating materials is accelerated.
Hot Tags: lab humidity chamber, manufacturers, suppliers, factory, cost, price, used, specification, for sale, benchtop humidity chamber
