When testing products for waterproof performance, precision, repeatability, and standards compliance are critical. Many devices in automotive, electronics, and lighting industries must survive exposure to heavy rain, water jets, or high-pressure sprays without damage. A reliable test chamber ensures you can validate these products in controlled, measurable conditions.
LIB's IPX5/IPX6 waterproof tester combines robust engineering, precision flow control, and flexible operation to reproduce both moderate and high-pressure water-jet conditions. The system delivers reliable, repeatable testing and complies with IEC 60529, ISO 20653, and DIN 40050‑9 standards. With interchangeable nozzles, intelligent PID-controlled flow, and corrosion-resistant interiors, LIB's solution ensures accurate results for products exposed to water in real-world scenarios.
Real Reviews of LIB Rain Test Chambers
"We purchased the RD-800C IP tester from LIB Industry and it has been very useful for developing our outdoor products. We are very happy with it."
- Johns, Sr. Reliability Engineer, U.S. Electronics Compan
This article explains how the LIB IPX5/IPX6 Waterproof Tester works. We'll cover its design principles based on international standards, how it performs tests on lighting products, guidance for choosing the right IP rating, and answers to common operational questions.
Working Principles of the IPX5/IPX6 Waterproof Tester
1. Standards Design
The LIB IPX5/IPX6 tester is designed according to the most widely recognized waterproofing standards:
IEC 60529 defines IPX5 and IPX6 testing with specific nozzle diameters, flow rates, and spray distances.
ISO 20653 applies IEC specifications to automotive components, simulating scenarios like underbody sprays and high-speed rain.
DIN 40050‑9 addresses real-world durability for vehicles, including pressure washers and outdoor exposure.
By referencing these standards, LIB ensures that each test meets internationally accepted criteria, making certification and market approval smoother.
2. Precision Implementation

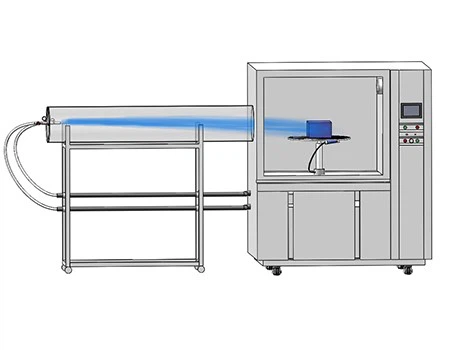

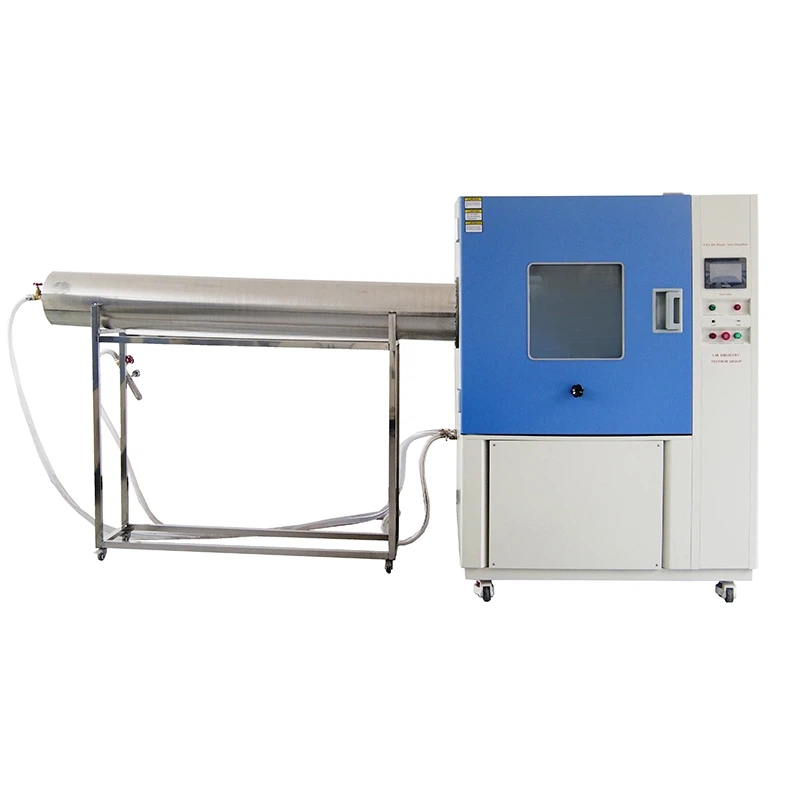

The LIB IPX5/IPX6 chamber uses a dual-nozzle system:
IPX5 nozzle: 6.3 mm diameter, 12.5 L/min flow, 30 kPa pressure.
IPX6 nozzle: 12.5 mm diameter, 100 L/min flow, 100 kPa pressure.
Each nozzle is machined to tight tolerances, producing a water-jet core of 40 mm diameter at a 2.5 m distance. An integrated electromagnetic flowmeter and PID controller maintain flow rates in real time. The rotating turntable (350–500 mm height, 1 r/min) ensures uniform exposure. This eliminates test variability and guarantees reproducible results every time.
3. Differences Between IPX5 and IPX6
| Feature | IPX5 | IPX6 | Standard Reference |
|---|---|---|---|
| Nozzle Diameter | 6.3 mm | 12.5 mm | IEC 60529 |
| Flow Rate | 12.5 L/min | 100 L/min | IEC 60529 |
| Water Pressure | ~30 kPa | ~100 kPa | IEC 60529 |
| Application | Moderate water jets | Powerful water jets | ISO 20653/DIN 40050‑9 |
| Typical Use | Electronics, sensors | Automotive components, outdoor lighting | IEC 60529 |
This comparison makes it easy to determine the right test for your product's exposure conditions.
Popular waterproof and Dustproof testers
LIB IPX5/IPX6 Testing method for Lighting Products
IEC 60529 Test Cycle for Lighting Products
Lighting fixtures are tested using cycles defined by IEC 60529 for IPX5/IPX6:
1. Cycle Duration: 3–5 minutes per surface orientation.
2. Spray Angle: 60° from the vertical, uniformly covering all surfaces.
3. Distance: 2.5 m from nozzle to specimen.
4. Rotation: Turntable rotates at 1 r/min to expose all side12
LIB's IPX5/IPX6 chamber follows this cycle precisely, with automated timing and a rotating turntable. The system ensures complete coverage and eliminates human error.
LIB Advantages in Lighting Tests
|

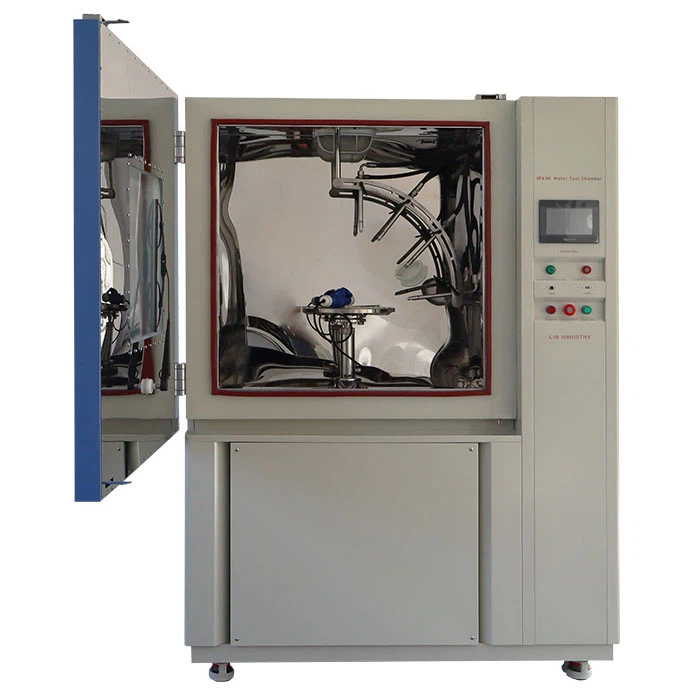

Workroom Dimension (mm) |
800*800*800 D*W*H |
Click here for details on the IPX5/IPX6 Waterproof Tester

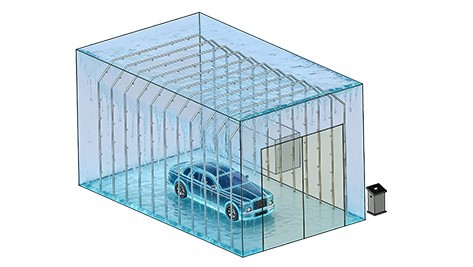

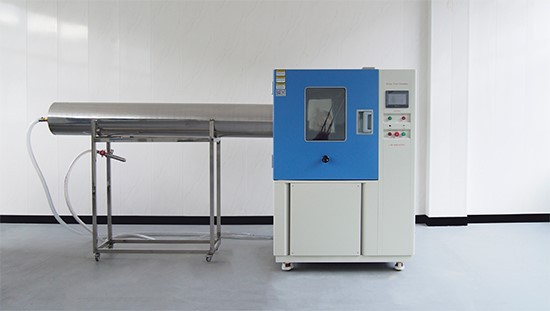

Customized Walk-in IPX5/IPX6 Waterproof Tester for an Iranian Automotive Company by LIB Industry |
|
External Dimension (mm) |
950*3150*1800 D*W*H |
|
|
Interior Volume (L) |
510 |
|
|
Diameter of Turntable (mm) |
600 |
|
|
Turntable Loads |
20kgs Max |
|
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|
|
Internal Diameter of IPX5 Nozzle |
6.3mm |
|
|
Internal Diameter of IPX6 Nozzle |
12.5mm |
|
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
1. High-Precision Nozzles: Consistent water-jet core maintains standard diameter, avoiding over- or under-testing.
2. Real-Time Flow Control: PID-regulated flow ensures compliance with IEC 60529, even during long test runs.
3. Specimen Fixtures: Adjustable clamps and ties secure fixtures to prevent displacement during high-pressure spray.
For example, LIB successfully supplied the IPX5/IPX6 chamber to Intertek (USA) to test R78‑1000 lighting enclosures. The chamber allowed full-cycle testing under 100 kPa water jets without specimen movement, demonstrating repeatable, standards-compliant results.
Maintaining Your IPX5/IPX6 Water Jet Test Chambers
1. According to System Components
Spray Nozzles: Clean nozzles regularly to prevent clogging. Inspect for wear and replace if damaged.
Water Pump & Pipes: Check for blockages or leaks monthly. Ensure pipes are not cross-knotted to maintain proper flow.
Filters & Flow Meters: Change water filters annually and calibrate flow meters to ensure accurate testing.
2. Based on Electrical System
Controller & Circuit Board: Clean dust, tighten screws, and check all connections for loose wiring. Perform functional checks monthly.
Contactors & Transformers: Regularly clean dust and tighten screws to maintain stable operation.
Solenoid Valves: Ensure proper operation and no leakage, clean dust, and tighten screws monthly.
3. Operational Considerations
Sealing & Lock Mechanisms: Inspect sealing strips for aging or hardening. Replace every 2 years or if leakage occurs. Ensure locks are properly tightened.
Water Tank & Drainage: Drain and clean the tank regularly; check that automatic inlets and outlet valves work properly.
Grounding & Safety: Inspect grounding connections and ensure all electrical safety measures are in place before testing.
FAQs on the LIB IPX5/IPX6 Waterproof Tester
Q1: Are fixtures provided for high-pressure tests?
A1: Yes. For both IPX5 (~30 kPa) and IPX6 (~100 kPa) tests, the turntable includes adjustable ties and clamps to secure small or irregular specimens. This ensures safety and test reliability.
Q2: Does water hit the observation window?
A2: Some water mist may contact the tempered-glass door or window. The glass is impact-resistant, and LED lighting ensures visibility throughout the test.
Q3: How long can a full water tank support testing?
A3: The closed-loop circulation system recycles water continuously. One full tank can support long-duration testing without refills, saving energy and water while maintaining flow stability.
Q4: Warranty and support?
A4: LIB provides a 3-year warranty, lifetime maintenance, and 24/7 technical support. Spare parts are delivered globally within 7–15 days, and remote troubleshooting ensures minimal downtime.
Any customization can be made. LIB offers a 3-year warranty and lifetime service. Any issues that cannot be resolved during the warranty period will be replaced free of charge. 24/7 English-speaking after-sales team. Fast shipping within 7-15 days.
Contact LIB Industry today to discuss how our IPX5/IPX6 Water Jet Test Chamber can safeguard your product quality and brand reputation.
