Outdoor products face years of sunlight, rain, humidity, and temperature changes throughout their service life. Waiting several years to evaluate material durability is impractical for manufacturers. This is why accelerated weathering testing has become an essential part of product development and quality control.

This article explains how long LIB typical test takes in a Xenon Lamp Aging Test Chamber, which standards determine testing duration, which industries benefit most from xenon testing, and why leading organizations such as Electricite De France selected LIB's customized xenon weathering solution for critical cable performance verification.

1. ASTM G155 Exposure Cycles and Typical Test Duration

ASTM G155 is one of the world's most widely recognized standards for xenon arc weathering testing. It specifies the use of xenon arc lamps to simulate full-spectrum sunlight, including ultraviolet (UV), visible light, and infrared radiation.

Unlike pass/fail standards, ASTM G155 provides exposure methods and test cycles. Typical testing durations include:

① 500 hours for preliminary material screening

② 1000 hours for coating and plastic durability evaluation

③ 1500–2000 hours for automotive exterior materials

④ 3000 hours or longer for high-reliability outdoor applications

For example, ASTM G155 Cycle 1 commonly uses:

① 102 minutes light exposure

② 18 minutes light exposure with water spray

③ Black Panel Temperature (BPT): 63°C

Under these conditions, manufacturers can simulate years of outdoor weather exposure within several weeks or months.

2. How LIB Xenon Lamp Aging Test Chamber Meets ASTM G155 Requirements

LIB Xenon Lamp Aging Test Chambers are specifically designed to comply with ASTM G155 testing methods.

Model	XL-S-750 Xenon Lamp Aging Test Chamber
Internal Dimension (mm)	950*950*850 mm
Overall Dimension (mm)	1300*1420*1800 mm
Sample holder	Adjustable speed, 1r /min
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter
Irradiance Range	150 W/㎡
Bandwidth Measurement	300~400 nm
Chamber Temperature Range	-40～ 100 ℃ ±2 ℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2 ℃
Humidity Range	30 % ~ 98 % RH
Water Spray Cycle	1~9999 H 59 M (Adjustable)
Controller	Programmable color LCD touch screen controller
Radiometer	UV Radiometer, Tolerance: ±5 %

High-Precision Xenon Light Simulation

ASTM G155 requires xenon arc lamps to reproduce the full spectrum of natural sunlight, including ultraviolet, visible, and infrared wavelengths. LIB Xenon Lamp Aging Test Chamber is equipped with a 4500W water-cooled xenon lamp and professional optical filter system, providing a spectral range of 280–800 nm. The chamber accurately simulates real outdoor sunlight conditions, making it suitable for weathering tests on plastics, coatings, cables, automotive parts, and construction materials.

Accurate Irradiance and Temperature Control

To meet ASTM G155 requirements, irradiance and specimen temperature must remain stable throughout the test. LIB integrates a full-spectrum irradiance sensor and Black Panel Temperature (BPT) monitoring system. Combined with intelligent PID control technology, the chamber continuously adjusts operating conditions to maintain precise light intensity and temperature, ensuring highly repeatable and reliable test results over long exposure periods.

Automatic Moisture and Spray Simulation

ASTM G155 emphasizes the importance of moisture exposure when evaluating outdoor durability. LIB Xenon Lamp Aging Test Chamber includes automatic humidity control and water spray systems that simulate rain, dew, and condensation. The integrated deionized water supply system supports continuous operation while reducing maintenance requirements. By combining sunlight, humidity, and water spray in a single test cycle, the chamber provides a more realistic simulation of natural weathering environments.

Water-Cooled Design for Long-Term Stability

Compared with conventional air-cooled xenon systems, LIB's water-cooled design removes heat more efficiently and maintains a more stable light spectrum during extended testing. This reduces irradiance fluctuations, extends xenon lamp service life, and improves overall testing consistency. For long-duration weathering programs ranging from 1000 to 3000 hours or more, stable operation is essential for generating dependable aging data.

Flexible Programming for ASTM G155 Test Cycles

Different products often require different exposure conditions. LIB chambers support fully programmable test profiles, allowing users to create customized sequences of light exposure, water spray, humidity control, and temperature changes. Whether following ASTM G155 Cycle 1, ISO 4892-2 procedures, or customer-specific requirements, the chamber can automatically execute complex weathering programs while maintaining precise control of all critical parameters.

3. Which Industries Need Long-Term Xenon Weathering Tests?

Xenon weathering testing is ideal for products exposed to natural sunlight and outdoor environments.

Common applications include:

Automotive Industry

Testing according to: ASTM G155, SAE J2527,  ISO 4892-2

Used for: Interior trim, exterior plastics, rubber seals, automotive coatings

Cable and Wire Industry

Testing according to: EN 50483-6, IEC 60502

Used for: Power cables, Insulation materials, Outdoor connectors, Transmission accessories

Construction Materials

Testing according to: ISO 4892-2, ASTM D2565

Used for: Roofing materials, Facade coatings, Composite materials, Plastic building components.

Manufacturers can predict service life, optimize formulations, and reduce warranty risks before products enter the market.

xenon Lamp Aging Test Chamber and Achieved Excellent Results

In April 2023, Electricite De France, one of Europe's largest electricity transmission organizations, contacted LIB with a testing requirement for cable performance evaluation according to EN 50483-6.

The customer needed:

• Accurate solar radiation simulation

• Stable low-temperature operation

• Long-term reliability testing

• Compliance with international standards

After reviewing the testing requirements, LIB recommended the customized XL-S-750C Low-Temperature Xenon Lamp Aging Test Chamber.

Key specifications included:

① Temperature range down to -40°C

② ASTM G155 compliant xenon light system

③ Precise irradiance control

④ Automatic humidity and spray functions

⑤ Large-capacity sample area

The Xenon Lamp Aging Test Chamber successfully met the irradiance requirements specified in EN 50483-6 while providing low-temperature environmental simulation not commonly available in standard xenon chambers.

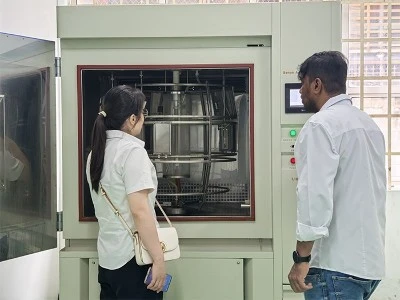

In November 2023, the customer received the equipment and completed installation successfully.

Several advantages received positive feedback:

Easy Sample Handling

The large front-opening door design allows convenient loading and unloading of cable samples, reducing operator workload during long testing programs.

High Temperature and Humidity Accuracy

The chamber provides: Temperature fluctuation: ±0.5°C. Temperature deviation: ±2.0°C. Stable humidity control. These capabilities improve testing consistency and reduce data variation.

Safe and Reliable Operation

LIB chambers include:Over-temperature protection, water shortage protection, over-pressure safety systems, and door safety interlocks. This ensures both operator safety and equipment protection during continuous operation.

International Certifications

LIB equipment is designed according to internationally recognized quality and safety requirements, including: CE Certification, IEC Electrical Standards, CSA Safety Requirements. This helps customers simplify procurement and compliance processes.

Cost-Effective Long-Term Investment

Compared with outsourcing weathering testing, owning a dedicated chamber allows customers to:① Accelerate product development. ② Reduce testing costs. ③Improve quality control. ④ Perform repeat testing whenever needed.

Both xenon and UV aging chambers accelerate weathering, but they serve different testing objectives.

For products exposed to complete outdoor environments, xenon testing generally provides more realistic weathering results.

Popular Aging Test Chambers

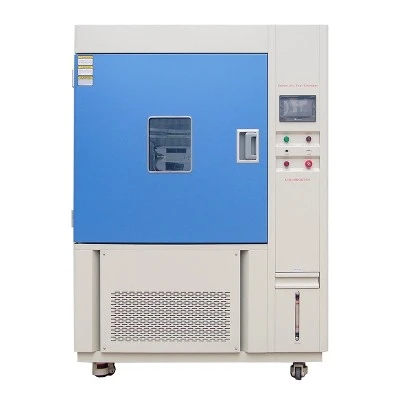

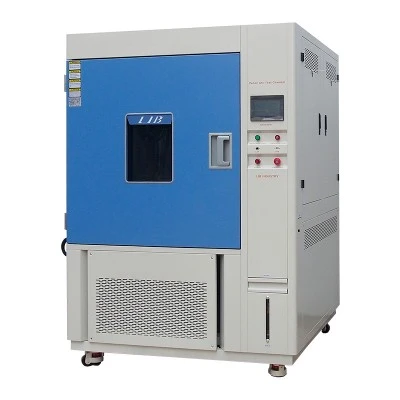

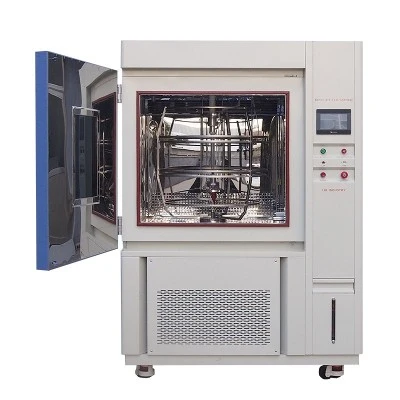

Xenon Lamp Aging Test Chamber

Accurate Sunlight Simulation, Reliable Weathering Results, ASTM G155 Compliant Testing

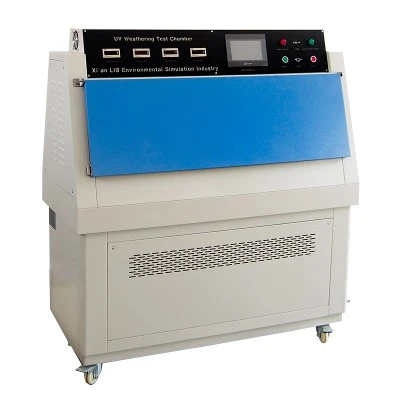

ASTM G155 UV Test Chamber

Fast UV Aging Evaluation, Accelerate Product Development

UV Exposure Chamber for PV Modules

Designed for Solar Module Durability Testing, Stable UV Irradiance Control

Temperature And Humidity Aging Chamber For Composites

Reproduce Real Climate Conditions, Enhance Product Reliability

IP69K Test Chamber

High-Pressure Water Protection Testing, Ensure Product Sealing Performance

Benchtop Temperature And Humidity Aging Chamber

Compact Design, Professional Environmental Testing

Q1: How Many Hours Should a Xenon Aging Test Last?

The required testing duration depends on the product type, material characteristics, and applicable industry standards. Many manufacturers start with 500 to 1000 hours for initial performance evaluation, while products intended for long-term outdoor exposure may require 2000 to 3000 hours or more. Standards such as ASTM G155, ISO 4892-2, and SAE J2527 often provide recommended exposure procedures, helping manufacturers estimate service life under real environmental conditions.

q2: Can LIB Customize Testing Programs?

Yes. LIB Xenon Lamp Aging Test Chambers support fully programmable test profiles, allowing users to adjust irradiance, temperature, humidity, water spray, and light/dark cycles according to specific testing requirements. Whether following ASTM G155, ISO 4892-2, SAE J2527, EN 50483-6, or internal corporate specifications, the chamber can be configured to match the desired weathering conditions accurately.

q3: Can the Chamber Perform Low-Temperature Xenon Testing?

For products used in cold climates, low-temperature weathering evaluation is often necessary. LIB offers customized xenon chambers capable of reaching temperatures as low as -40°C while maintaining stable irradiance and environmental control. These solutions are particularly suitable for cables, automotive components, electrical equipment, and outdoor infrastructure products that must withstand both sunlight exposure and extreme cold conditions.

Q4: Is Installation and Operation Complicated?

LIB designs its chambers for easy installation and user-friendly operation. Each system is delivered with detailed manuals, commissioning guidance, and online technical training. The intuitive touchscreen controller allows operators to create and manage test programs efficiently, reducing training time and helping laboratories quickly begin testing.

q5: How Long Does Delivery Usually Take?

Delivery schedules vary depending on the destination and shipping method. In most cases, customers in Asia receive equipment within one to two weeks, while shipments to Europe and North America generally require several weeks. LIB works closely with logistics partners to ensure safe transportation and provides complete support throughout customs clearance and equipment delivery.

q6: What Support Can Customers Expect After Purchase?

LIB provides comprehensive after-sales service throughout the entire equipment lifecycle. Customers benefit from a three-year warranty, lifetime technical support, remote troubleshooting assistance, and global spare-parts availability. A dedicated English-speaking technical team is available around the clock to respond to inquiries, helping minimize downtime and ensure continuous testing operations. If an issue cannot be resolved through technical support, LIB will provide an appropriate solution according to the service agreement, ensuring long-term reliability and customer satisfaction.
