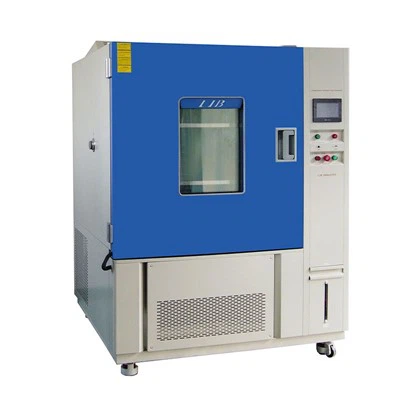

Temperature And Humidity Aging Chamber For Composites
Name: Temperature and Humidity Aging Chamber for Composites;
Model: TH-225;
Temperature Range: -70°C to +150°C;
Heating Rate: 3°C per minute;
Temperature Fluctuation: ±0.5°C;
Temperature Deviation: ±2.0°C;
Refrigerant: Eco-friendly refrigerant;
Options: Standard or customized;
Description
LIB Temperature and Humidity Test Chamber for Composites can simulate a broad spectrum of environmental conditions, with temperature options ranging from -70 ℃, -40 ℃, and -20 ℃ up to +150 ℃, and humidity adjustable between 20%RH and 98%RH. This enables precise evaluation of a product's performance and durability. Moreover, the chamber supports integration with combined tests such as temperature & humidity cycling (T&TH), vibration, corrosion, low-pressure, and other comprehensive climatic assessments, and it can also serve as a calibration chamber.
The Temperature and Humidity Test Chamber for Composites' testing capabilities comply with international and industry standards for composite and material evaluation, including IEC 60068, ASTM D5229 / D4332, ISO 9142, and UL 746B. It is specially designed for composites, enabling precise assessment of thermal aging, humidity and moisture resistance, mechanical property stability, and dimensional stability under extreme environmental conditions. This makes it ideal for applications in aerospace composites, automotive structural parts, wind turbine blades, and sports and recreational equipment, ensuring that composite materials maintain performance, reliability, and safety throughout their service life.
Application
Video show of the Temperature and Humidity Test Chamber for Composites
Parameters of the Temperature and Humidity Test Chamber for Composites
| Name | Temperature and Humidity Test Chamber for Composites | ||||||||
|
Model |
TH-100 |
TH-225 |
TH-500 |
TH-800 |
TH-1000 |
||||
|
Internal dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
||||
|
Overall dimension (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
1280*1550*2110 |
1500*1550*2110 |
||||
|
Capacity |
100L |
225L |
500L |
800L |
1000L |
||||
|
Temperature range |
-20℃ ～+150 ℃ |
||||||||
|
Low type |
A: -40℃ B:-70℃ C -86℃ |
||||||||
|
Huimidity Range |
20%-98%RH |
||||||||
|
Temperature deviation |
± 2.0 ℃ |
||||||||
|
Heating rate |
3 ℃ / min |
||||||||
|
Cooling rate |
1 ℃ / min |
||||||||
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
||||||||
|
Refrigerant |
Environment friendly refrigerant |
||||||||
|
Exterior material |
Steel Plate with protective coating |
||||||||
|
Interior material |
SUS304 stainless steel |
||||||||
|
Standard configuration |
1 Cable hole (Φ 50) with plug; 2 shelves |
||||||||
|
Timing Function |
0.1~999.9 (S,M,H) settable |
||||||||
detail Description of the Temperature and Humidity Test Chamber for Composites
Common Performance Tests for Composites：
Moisture Absorption Test: Expose composites to controlled humidity levels to measure moisture absorption rate and dimensional changes.
Thermal Cycling Test: Subject composites to alternating temperature cycles to assess thermal stability and fatigue resistance. Key parameters include thermal expansion and crack formation under temperature fluctuations.
UV Exposure Simulation: Simulate UV light exposure to evaluate UV degradation and its effect on the composite's color stability and mechanical properties over time. Key parameters include UV resistance and degradation rate.

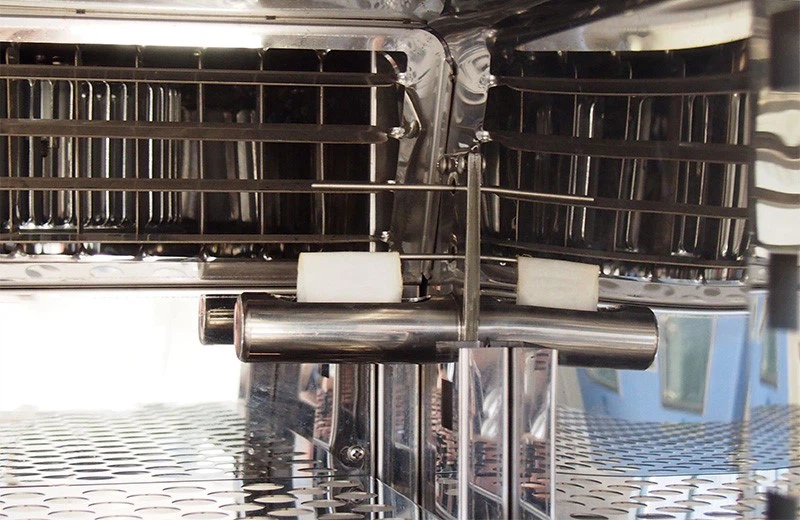

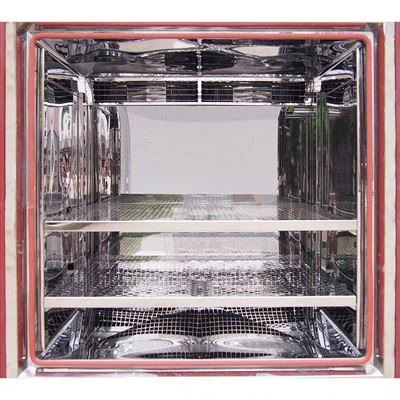

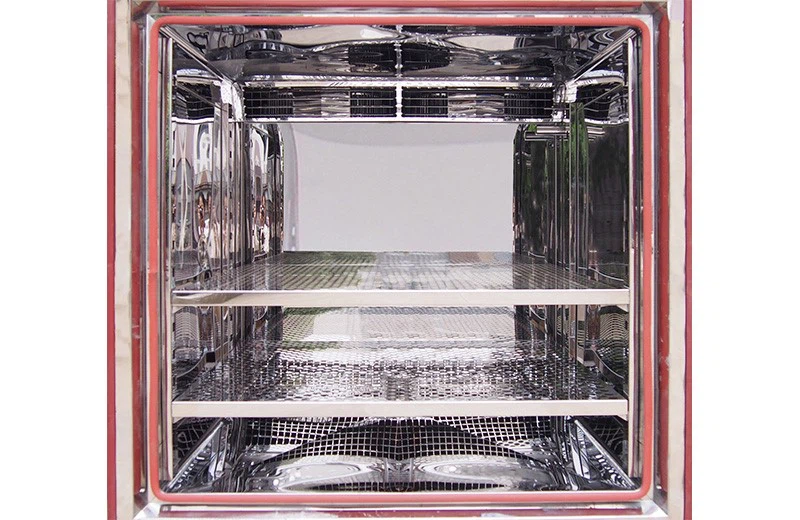

Anti-Corrosion Test Chamber Work Area
Anti-Corrosion Test Chamber Work Area provides excellent corrosion resistance and allows for easy cleaning and maintenance. Precision Air Circulation System uses multi-angle centrifugal fans to continuously circulate air, ensuring uniform temperature and humidity throughout the sample area and effectively eliminating hot or cold spots.
Precision Temperature and Humidity Measurement
Equipped with PT-100 Class A sensors, offering ultra-high resolution of ±0.001 °C for temperature and ±0.001 %RH for humidity, guaranteeing stable and accurate environmental monitoring.

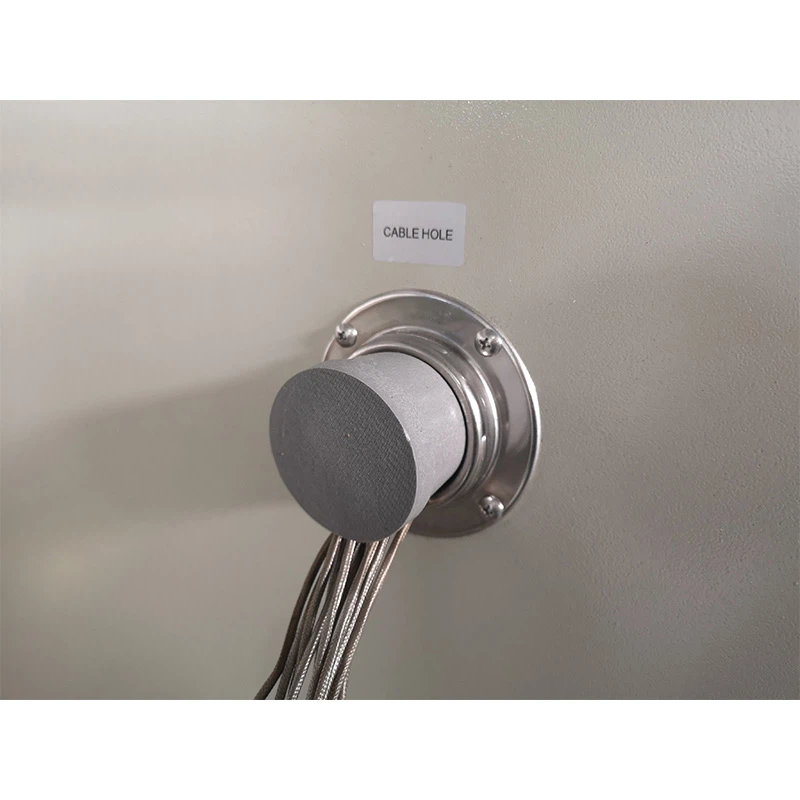

Adjustable Cable Hole
Features a standard 50 mm cable opening (custom sizes available) for supplying power to test samples or transmitting signals. Includes a heat-resistant silicone sealing plug to ensure airtight operation and prevent leaks.
High-Precision PID Control System
Equipped with a 7-inch color touchscreen, supporting multi-segment programmable control. Can store up to 120 programs, each containing 100 steps. Includes Ethernet and USB interfaces for remote monitoring and data export.

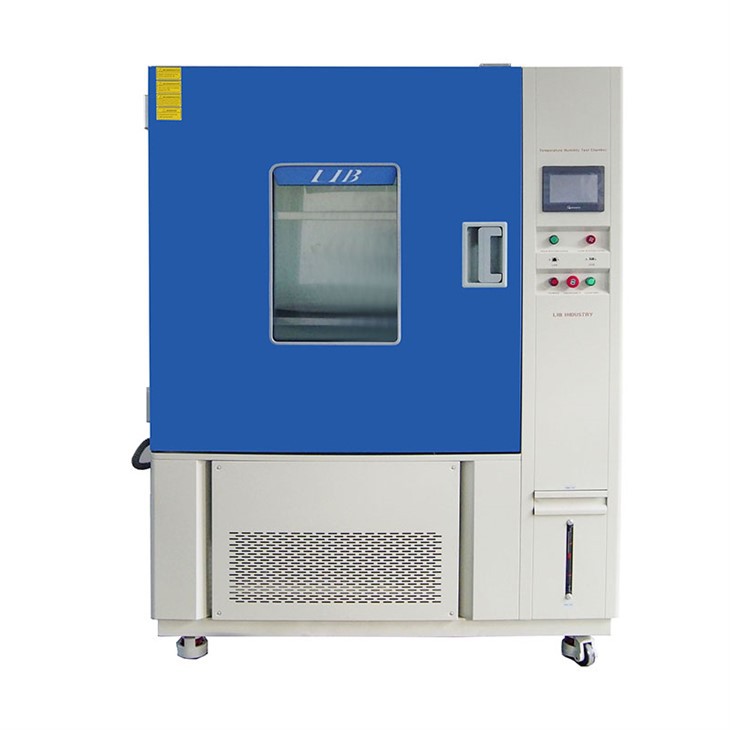

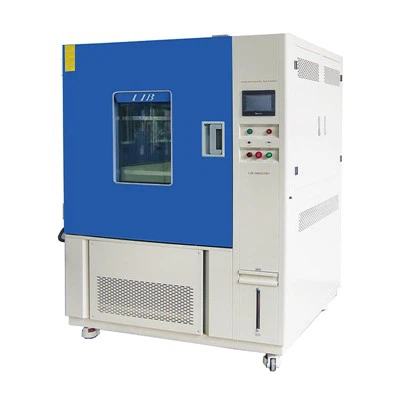

Panoramic View of the Temperature and Humidity Test Chamber for Composites
LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers in China. Equipped with a professional factory, we can offer you temperature explosion proof test chamber with competitive price. Now we have high quality temperature explosion proof test chamber for sale, welcome to buy our test chamber at low cost and check the price with our supplier.
