What is UL rain test device, in fact, is the United States standard rain test equipment, is to simulate the rain climate conditions, test the physical and other related properties of the product.
It is widely used, such as outdoor lighting, outdoor lamps, automotive lamps, household appliances, electrical, electrical cabinet power supply, communication products, signal devices, etc.
The function of UL rain test device is to determine whether the performance of the product meets the requirements, to facilitate the design, improvement, verification, and factory inspection of the product.
|
|
|
Here are some of the features of the device:
①UL rain test device is suitable for UL rain test of products.
② Spraying position of UL test device: the top three UL nozzles.
③UL is made of molded aluminum material rainwater test device frame part, stable structure, easy to clean.
④ The nozzle holder can be lifted and lowered freely by manual stainless steel wheel device.
⑤UL uses rain test device UL laboratory original imported nozzles fully meet the requirements of UL standards.
⑥ The support base adopts universal brake caster, which is easy to move and fix.

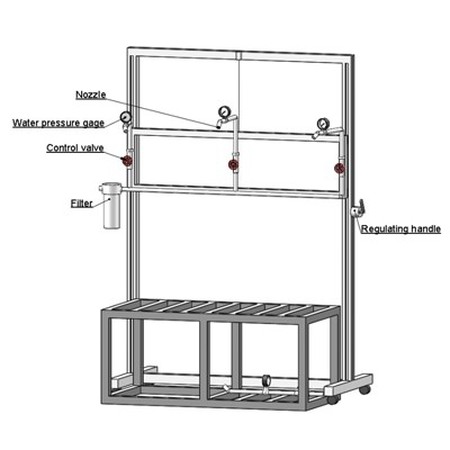

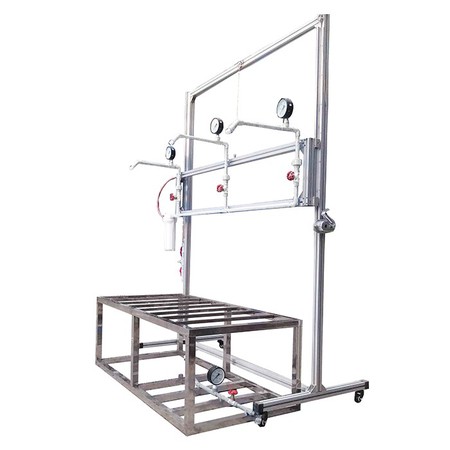

LIB UL rain test device
|
Model |
R-UL 020 |
|
Overall Dimensions (mm) |
80*150*220 cm |
|
Height adjustment range of spray device |
100~200 cm |
|
Number of spray head |
4 spray heads (There are 3 spray heads on the top and 1 spray nozzle on the bottom) |
|
Nozzle spacing |
71 cm |
|
Spraying Hole Diameter |
Φ 5 mm |
|
Water pressure |
34.5Kpa |
|
Sample platform size |
500*1500*500 |
|
Water supply system |
Automatic water supply, Water purification system |
|
Material |
SUS 304 stainless steel |
|
Standard |
UL50E Type 3R |
We are a China-based climate chamber manufacturers that specialize in environmental test chamber and other environmental testing solutions. If you are looking for a cost-effective UL rain test device, then we will be your best choice, please contact us(info@libtestchamber.com)for more information about this device or other environmental test equipment.
