IP Water Proof Test Chamber
IP Rate： IPX1 IPX2 IPX3 IPX4;
Swing Angle of Oscillating Tube：0°~±180°(Adjustable);
Water Re-circulation System;
Spraying Hole Diameter: φ0.4mm;
Hole Spacing: 50 mm;
View window: double layer insulating glass with wiper;
Models：R-800C，R-1200C Certification: CE, RoHS, ISO, CSA Certificates;
Power Supply: 380V 50Hz Trademark: LIB;
Program: 100 programs 20 segment;
Description
LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ip water proof test chamber in China, featured by quality products and low price. Welcome to buy CE approved ip water proof test chamber in stock here and get quotation from our factory. Contact us for discount information.
IP Water Proof Test Chamber is mainly used to simulate the lamps in the rain, to assess the ability of the lamp against water penetration through the impact of lamps by the rain. rain test equipment applies to the assessment of electrical products, housings and seals in the rain environment that can guarantee the good performance of chamber and components. It meets the IPx1, IPx2, IPx3, IPx4 requirements.
Features
Rain drip test machine meet the standard: IEC60529 (IPX1/IPX2/IPX3/IPX4)
IPX-3 Oscillating Tube Radius: 400 millimetre; Water Pressure Control: Flow meter
IPX-4 Oscillating Tube Radius: 600 millimetre; Water Pressure Control: Flow meter
Observation Window: Double layer insulating glass with wiper
Power Supply: 380V 50Hz
Maximum Noise: 65 dBA
Environmental Conditional: 5℃～+35 ℃,≤85% RH
Standard: IEC 60529, ISO20653
Parameters
Model: R-800C
Internal Dimensions | 900*900*900 millimetre |
Overall Dimensions | 1120*1460*1660 millimetre |
Interior Volume | 720 litre |
Drip tray size | 600*600 millimetre |
Spraying Hole Diameter | φ0.4 millimetre |
Hole Spacing | 50 millimetre |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） |
Turntable Rotation Speed | 1r/min (Adjustable) |
Oscillating Tube Radius | 400 millimetre |
Water Pressure Control | Flow meter |
Build-in Water Tank | 370*375*950 millimetre |
View Window Size | 475*475 millimetre |
Model: R-1200C
Internal Dimensions (mm) | 1400*1400*1400 millimetre |
Overall Dimensions (mm) | 1600*1950*2100 millimetre |
Interior Volume | 2740 litre |
Drip tray size (mm) | 900*900 |
Spraying Hole Diameter | φ0.4 millimetre |
Hole Spacing | 50 millimetre |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） |
Turntable Rotation Speed | 1r/min (Adjustable) |
Oscillating Tube Radius | 600 millimetre |
Water Pressure Control | Flow meter |
Build-in Water Tank | 370*375*950 millimetre |
View Window Size | 475*475 millimetre |
Controller system

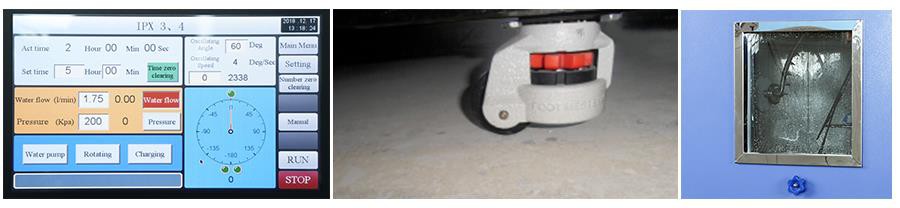

Water spray testing device use PLC touch screen controller; Ethernet connection, PC Link, USB
Water supply system
Water tank, booster pump, Automatic water supply, Water purification system
Material
Exterior Material: Steel Plate with protective coating
Interior Material: SUS304 stainless steel
Structure

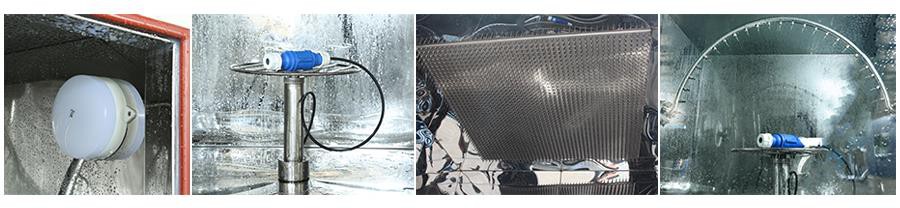

Built-in Lighting，Internal Power，Drip Tray，Oscillating Tube
Controller System, Castor, View Window
