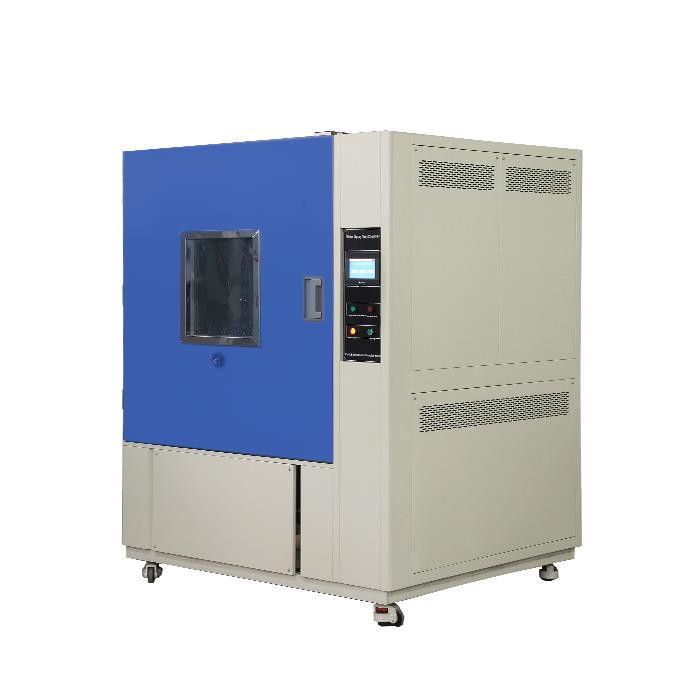

Waterproof Water Ingress Test Chamber
IP Rate： IPX1 IPX2 IPX3 IPX4;
Swing Angle of Oscillating Tube：0°~±180°(Adjustable);
Water Re-circulation System;
Type: Waterproof Test Chamber;
Water spray type: drip, water spray;
Controller: programmable color display touch screen controller;
Program: 100 programs 20 segment;
External materials: A3 steel plate with galvanized coating;
Test chamber color can be customized;
Viewing window: double-layer tempered glass, specially designed seal
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of waterproof water ingress test chamber in China, featured by quality products and low price. Welcome to buy CE approved waterproof water ingress test chamber in stock here and get quotation from our factory. Contact us for discount information.
Waterproof Water Ingress Test Chamber are designed and manufactured according to IEC 60529,Degrees of protection provided by enclosures (IP Code). Water Ingress Testing machine is applied in IPX3 ,IPX4 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
Standard Features
*Protection against drip, spraying and splashing water;
*IPX1, IPX2, IP X3 and IP X4 tests can be performed;
*Oscillating tube and drip tray;
*Programmable color display touch screen controller;
*Automatic water supply;
*Large window with wiper;
*Test machine internal illumination;
*IEC60529 standard
Parameters
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
Interior Volume (L) | 720 | 2740 |
Drip tray size (millimeter) | 600*600 | 900*900 |
Spraying Hole Diameter | φ0.4millimeter | |
Hole Spacing | 50 millimeter | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable) | |
Oscillating Tube Radius | 400millimeter | 600millimeter |
Water Pressure Control | Flow meter | |
Build-in Water Tank(millimeter) | 370*375*950 | |
View Window Size(millimeter) | 475*475 | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Observation Window | Double layer insulating glass with wiper | |
Power Supply | 380V 50Hz | |
Maximum Noise | 65 dBA | |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
Standard | IEC 60529, ISO20653 | |
Controller System
Programmable color LCD touch screen controller, Ethernet connection, PC Link, network connection computer;
IP code rain test equipment can edit 100 programs 20 segment;
set system language is English for standard
Material
Rain spray testing device material:
Exterior material: steel Plate with protective coating
Interior material: SUS304 stainless steel
Safety Device
Over-temperature Protection; Over-current Protection;
Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Structure
Built-in Lighting，Internal Power，IPX1 IPX2 Drip Tray，IPX3 IPX4 Oscillating Tube
Controller System, Casters that can move and brake, Observation Window
Packing & Shipping
Packed with export standard wooden case.
Strong packages can be used for sea, air, railway, truck transport and multimodal transport.
Quick ship, some models are in stock, ship in 1-3 days.
Provide door to door service for customers.
