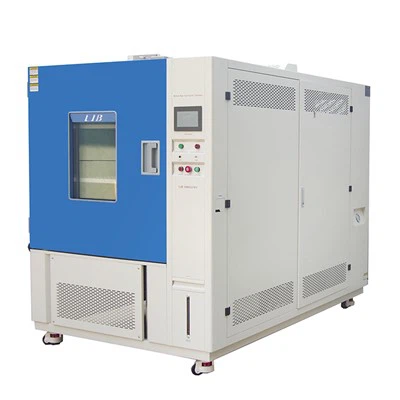

Gas Testing Chamber

Name: Gas Testing Chamber Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: LIB Environmental Simulation Industry
SKU: 238360199

Name: Gas testing chamber
Temperature: 15℃~80℃;
Humidity: 30%~98%RH;
SO2 Concentration: 25±5 ppm;
Air Change Rate: 3~5 /h;
High Accuracy Gas Sensor;v Gas Exhaust Device;
Electromagnetic Lock;

Send Inquiry

Description

LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of gas testing chamber in China, featured by quality products and low price. Welcome to buy CE approved gas testing chamber in stock here and get quotation from our factory. Contact us for discount information.

LIB gas testing chamber is the best device for gas corrosion test. Common toxic gases come from industrial pollution, the burning of coal and oil, and the decomposition of biological materials. It has an irritating effect on the respiratory tract and is also easy to inhale poisoning. Including ammonia, ozone, nitrogen dioxide, sulfur dioxide, carbon monoxide, hydrogen sulfide and photochemical smog.

Our gas testing chamber includes a variety of common toxic gases, but you can also customize some special toxic gases according to your test needs. The most common toxic gas test requirement is sulfur dioxide, and the parameters are as follows:

Parameter

	SO-100	SO-225	SO-500	SO-800	SO-1000
Internal Dimensions (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimensions (mm)	86010501620	96011501860	118013502010	128015502110	150015502110
Interior Volume (L)	100	225	500	800	1000
Temperature Range	15 ℃ ～ 80 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	±1% RH
SO2 Concentration	25±5 ppm
Air Change Rate	3~5 /h
Cooling system	Mechanical compression refrigeration system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Water Supply System	Water purification system, Automatic water supply
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Gas Sensor	SO₂ gas sensor
Air Circulation	Centrifugal wind fan
Door Lock	Electromagnetic lock
Gas Exhaust Device	SO₂ Exhaust Unit

Structures

Gas Testing Chamber 1

Workroom

The inner material: double-layer SUS316 stainless steel to ensure the robustness

Gas Testing Chamber 2

Gas Exhaust

The SO2 exhaust device is equipped with an NaOH solution tank to dilutes SO2 to make the workplace clean and safe.

Gas Testing Chamber 3

Electromagnetic Lock

Door lock will generate a strong suction force and tightly attract the iron plate to lock the door

Gas Testing Chamber 4

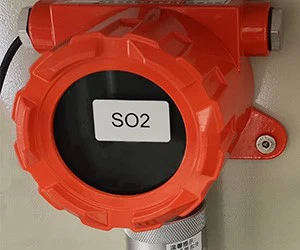

SO₂ Sensor

SO₂ gas concentration detection transmitter

High accuracy, easy to exchange

Application

Gas testing chamber is used to determine the corrosion resistance of parts, electronic components, metal materials, electrical, electronic and other products and industrial products in sulfur dioxide gas.

Standard

DIN 50018-2013
ISO 3231-1993
ISO 6988-1985

LIB Environmental is one of the professional and credible manufacturers of climatic and environmental testing chambers. Equipped with a professional factory, we can offer you gas testing chamber with competitive price. Now we have high quality environmental test chamber for sale, contact us today to get the best quote!
