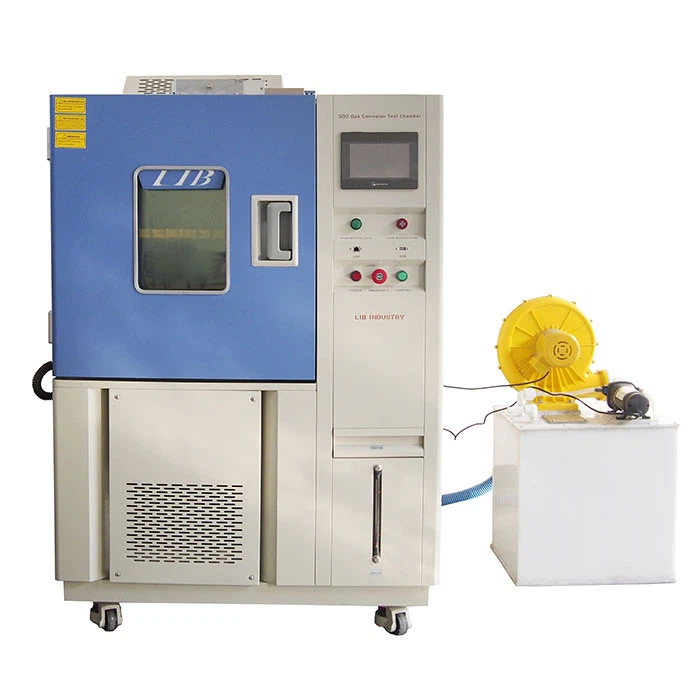

SO2 Corrosion Noxious Gas Test Chamber
Temperature: 15℃~80℃;
Humidity: 30%~98%RH;
SO2 Concentration: 25±5 ppm;
Air Change Rate: 3~5 /h;
SO2 Concentration Sensor;
NAOH Exhaust Tank;
Custom and option;
Good Aealing Performance;
Electromagnetic Lock;
CE ROHS Certification
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of so2 corrosion noxious gas test chamber in China, featured by quality products and low price. Welcome to buy CE approved so2 corrosion noxious gas test chamber in stock here and get quotation from our factory. Contact us for discount information.
LIB SO2 Corrosion Noxious Gas Test Chamber can be used to test the product's resistance to gas corrosion by simulating gas corrosion environment. SO2 Corrosion Noxious Gas Test Chambers reproduce damages by temperature, relative humidity and noxious gas corrosion to material, components and constructions. The test chambers allow selective and reproducible accelerated corrosion testing complying with the requirements of relevant national and international standards such as CE, ROHS, ISO, IEC60068-2-42, IEC60068-2-60, etc.
Cooling system/Humidity system
● Mechanical compression refrigeration system;
● External isolation, stainless steel surface evaporation humidifier
Temperature sensor/Humidity sensor/Gas sensor
● PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃;
● Dry and wet bulb sensor;
● SO2 gas sensor
Exterior Material/Interior Material/Thermal Insulation
● Steel Plate with protective coating;
● SUS304 stainless steel;
● Polyurethane foam and insulation cotton
Safety protect device
● Humidifier Dry-combustion protection;
● Over-temperature Protection;
● Over-current Protection;
● Refrigerant High-pressure protection;
● Water Shortage Protection;
Gas Exhaust Device
● NAOH solution tank
Controller system
● Programmable color LCD touch screen controller; Ethernet connection, PC Link
Heating Element
● Nichrome heater
Door Lock
● Electromagnetic lock
Sample Holder
● Static + dynamic combined sample holder
Power Supply
● 220V 50Hz / 380V 50Hz
Model | SO-100 | SO-225 | SO-500 | SO-800 | SO-1000 |
Internal Dimensions (mm) | 450*450*500 | 500*600*750 | 800*700*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimensions (mm) | 1050*880*1440 | 1050*1020*2000 | 1320*1320*2170 | 1470*1520*2315 | 1670*1520*2315 |
Interior Volume (L) | 100 | 225 | 500 | 800 | 1000 |
Temperature Range | 15 ℃ ～ 80 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 30% ~ 98% RH | ||||
Humidity Deviation | ±1% RH | ||||
SO2 Concentration | 25±5 ppm | ||||
Air Change Rate | 3~5 /h | ||||
Build-in Water Tank(mm) | 270*300*400 | 270*300*450 | |||
View Window Size(mm) | 250*280 | 300*330 | 330*370 | ||
|
|
|  |
Air Circulation centrifuger air | View Window | Controller | Polyurethane Foam |
|
|  |  |
Electromagnetic lock | Workroom | Electromagnetic Lock | Cooling System |
