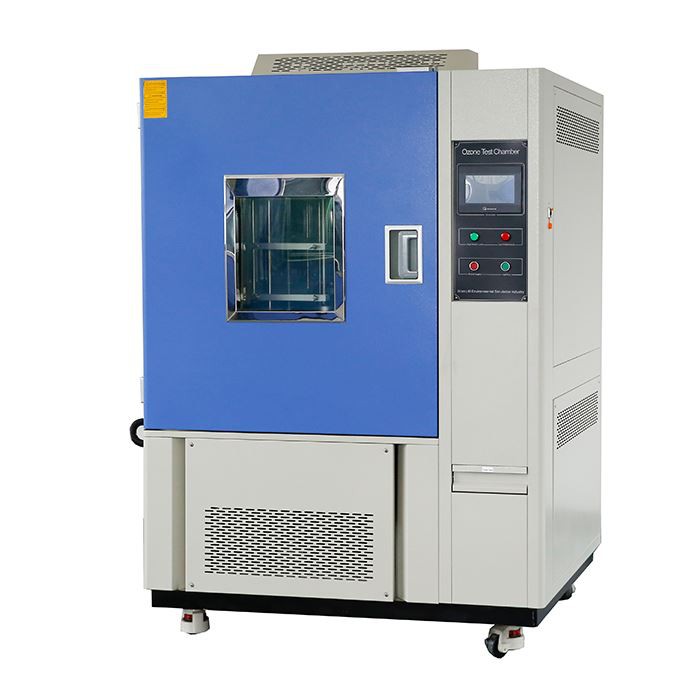

Cable Ozone Ageing Test Chamber

Name: Cable Ozone Ageing Test Chamber Manufacturers, Suppliers, Factory - Cost Price - LIB Industry
Brand: Environmental Simulation Industry
SKU: 141343206

adhibition: Wire Environmental Test;
Temperature Range: 0℃ ～ +100 ℃;
Ozone Concentration: 1～1000PPHM;
Clamps Tensile Stretch: 5%～35%;
Humidity Range: 30% ~ 98% RH;
Name: Cable Ozone Ageing Test Chamber

Send Inquiry

Download

Description

Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of cable ozone ageing test chamber in China, featured by quality products and low price. Welcome to buy CE approved cable ozone ageing test chamber in stock here and get quotation from our factory. Contact us for discount information.

cable ozone ageing test chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products(cable and wire).

Technical Specification

Name	Cable Ozone Ageing Test Chamber
Model	OC-250	OC-500	OC-800	OC-010
Internal Dimension (mm)	600600700	700800900	80010001000	100010001000
Overall Dimension (mm)	96011501860	118013502010	128015502110	150015502110
Interior Volume (L)	250	500	800	1000
Temperature Range	0℃ ～ +100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration	1～1000PPHM
Sample Holder Rotate Speed	0~10 r/min
Airflow Rate	0 ~ 60L/min
Clamps Tensile Stretch	5%～35%
Controller	Programmable color LCD touch screen controller,Ethernet connection, PC Link
Standard	ISO1431;ASTM 1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171
Environmental Conditional	5℃～+35 ℃ ≤85% RH

Cable and Wires Environmental Test

ASTM D1149 - 18 Standard Test Methods for Rubber Deterioration – Cracking in an Ozone Controlled Environment

Method A: Dynamic stretching

Method B: Static stretching

LIB INDUSTRY cable test chamber meet Dynamic+Static Test

cable ozone ageing test chamber (2)


Test Area rack can be adjusted dynamically and statically,meet a variety of test requirements	Ozone treatment device to protect the laboratory environment clean
