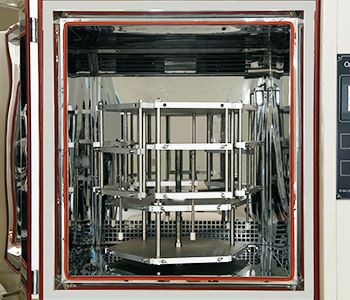

Ozone Testing Chamber
Temperature: 0℃~+100℃;
Humidity: 30% -98%RH;
Ozone Concentration: 1～1000PPHM;
Clamps Tensile Stretch: 5%～35%;
Dry and Wet Bulb Sensor;
Static+dynamic Combined Sample Holder;
Free Calibration;
A variety of models are available;
Description
Xi'an LIB Environmental Simulation Industry is one of the most reliable manufacturers and suppliers of ozone testing chamber in China, featured by quality products and low price. Welcome to buy CE approved ozone testing chamber in stock here and get quotation from our factory. Contact us for discount information.
The exposure of elastomers (rubber) to ozone leads to the formation of cracks which can considerably reduce the useful life of products. For this reason antioxidants and ozone waxes have to be added to protect most types of rubber in use.
LIB Industry ozone testing chamber offer you the optimal opportunity to simulate and measure rubber aging by means of ozone within a few days.
Technical Specifications
Model | OC-250 | OC-500 | OC-800 | OC-010 |
Internal Dimension (mm) | 600*600*700 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
Interior Volume (L) | 250 | 500 | 800 | 1000 |
Temperature Range | 0℃ ～ +100 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Humidity Range | 30% ~ 98% RH | |||
Humidity Deviation | ± 2.5% RH | |||
Cooling Rate | Ambient ~ 0℃ within 20 min | |||
Ozone Concentration | 1～1000PPHM | |||
Sample Holder Rotate Speed | 0~10 r/min | |||
Airflow Rate | 0 ~ 60L/min | |||
Clamps Tensile Stretch | 5%～35% | |||
Controller | Programmable color LCD touch screen controller | |||
Ethernet connection, PC Link | ||||
Standard | ISO1431;ASTM 1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171 | |||
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||
Standard Features
Rubber Ozone Chamber Volume:250L,500L,800L,1000L,
Temperature Range: 0°C to +100°C
Temperature Stability: ±0.5°C
Temperature Variation: ±2°C
Humidity Range: 30%rH to 98%rH
Humidity Uniformity: ±2%rH
Ozone Concentration:1~1000 PPHM
Strain Rate of fixture: 5% to 35% (customizing options)
Rotational speed of sample holder: 0~10rpm
Details of the Advantage
 |  |
| Dynamic + static sample rack, meeting different test standards | Ozone aging test chamber use programmable controller, simple operation |
 |  |
| Standard configuration network port, convenient for data transmission | Purification ozone device to protect the laboratory environment |
According to the Following Standards
ASTM D1149 - 18 Standard Test Methods for Rubber Deterioration – Cracking in an Ozone Controlled Environment
ISO 1431-3:2017 Rubber, vulcanized or thermoplastic – Resistance to ozone cracking
Our Service
Installation and commissioning
Installation, operation and performance qualification
Support and training (on-site)
Rubber ozone chamber support 3 years warranty service
Availablity of spare parts and consumables
The global agent
One-stop service
